Lensagon CM3514GS

1 Megapixel C-Mount lens for 1 inch sensors, F1.4, f=35mm

 Compare
SKU: 00205 Category:

Product Description

The C-Mount lens Lensagon CM3514GS is suitable for common sensors up to 1 megapixel with an image format of 1 inch. It is characterized by a particularly high light intensity.

Mount C-Mount
Sensor 1 inch
Focal Length 35 mm
Aperture (f#) 1.4
MOD 0.3 m
Back Focal Length 16.8
Angle of View (D) 26.1° / H: 20.9° / V: 15.8°
Megapixel (max.) 1 MP
IR Cut Filter No
TV Distortion -0.5
Weight 135 g
Iris manual-lock
Focus manual-lock
Filter M35.5 x P=0.5
Typ Standard
pdf

Additional Information

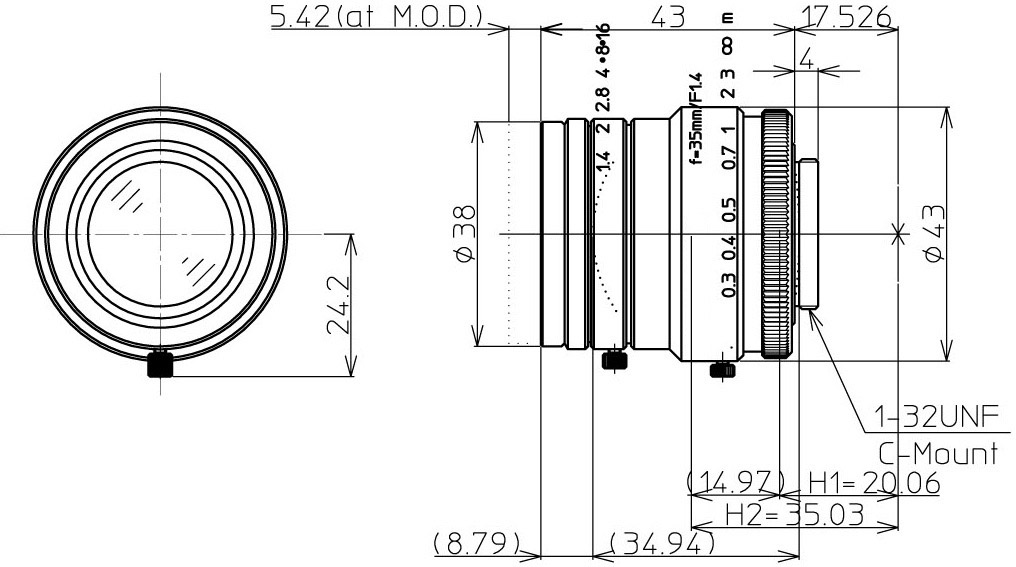

Drawing
