CK6M1628S118

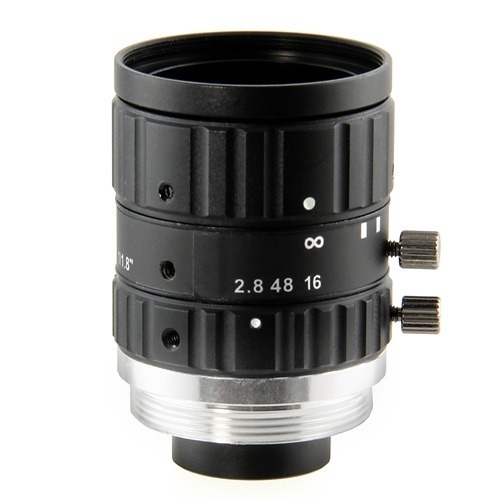

Lensagon CK6M1628S118

6 Megapixel C-Mount lens for 1/1.8 inch sensors, F2.8, f=16mm

 Compare
SKU: 00045 Category:

Product Description

The C-Mount lens Lensagon CK6M1628S118 is suitable for current sensors up to 6 megapixel with an image format of 1/1.8 inch.

Mount C-Mount
Sensor 1/1.8 inch
Focal Length 16 mm
Aperture (f#) 2.8
MOD 0.1 m
Angle of View (D) 31°
Angle of View (H) 25.7°
Angle of View (V) 17.5°
Megapixel 6 MP
IR Cut Filter No
TV Distortion -0.08
Weight 78 g
Iris manual-lock
Focus manual-lock
Filter Size M27 P=0.5
pdf

Additional Information

Technical Drawing:

Drawing
