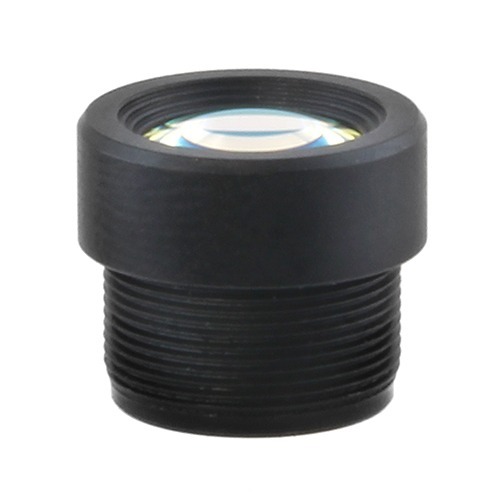

Lensagon BTOF1114S12-850

Megapixel S-Mount lens for 1/2 inch sensors, F1.4, f=11.3mm

 Compare
SKU: 11313 Category:

Product Description

The S-Mount lens Lensagon BTOF1114S12-850 is suitable for sensors below 1 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 11.3 mm
Aperture (f#) 1.4
MOD 0.78 m
Back Focal Length 5.96
Angle of View (D) 38.1°
Optical Distortion 2.1 %
Iris fixed
Focus fixed
Chief ray angle 12.6 °
Typ Standard
pdf

Additional Information


Drawing
