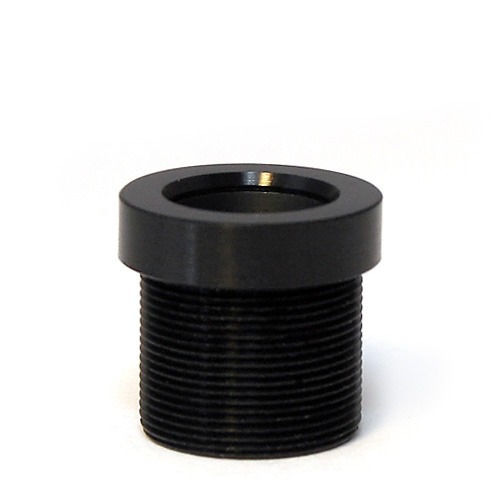

Lensagon BT12020

1 Megapixel S-Mount lens for 1/3 inch sensors, F2.5, f=12mm

 Compare
SKU: 00405 Category:

Product Description

The S-Mount lens Lensagon BT12020 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch.

MountS-Mount
Sensor1/3 inch
Focal Length12 mm
Aperture (f#)2.5
MOD0.4 m
Back Focal Length8.97
Angle of View (D)29°
Megapixel1 MP
IR Cut FilterNo
Optical Distortion-0.8 %
Weight3 g
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

Technical Drawing:

Drawing
