BM9040

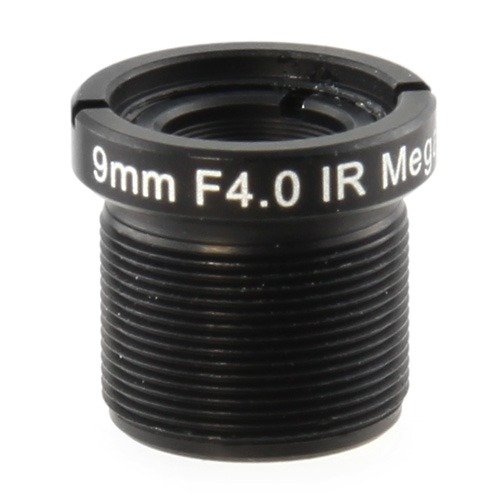

Lensagon BM9040

1 Megapixel S-Mount lens for 1/3 inch sensors, F4, f=9mm

 Compare
SKU: 10809 Category:

Product Description

The S-Mount lens Lensagon BM9040 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch.

Mount S-Mount
Sensor 1/3 inch
Focal Length 9 mm
Aperture (f#) 4
MOD 0.1 m
Back Focal Length 8
Angle of View (D) 34.4°
Angle of View (H) 28°
Angle of View (V) 21°
Megapixel 1 MP
IR Cut Filter No
Iris fixed
Focus fixed
pdf

Additional Information

Technical Drawing:

Drawing
