BM8020S12

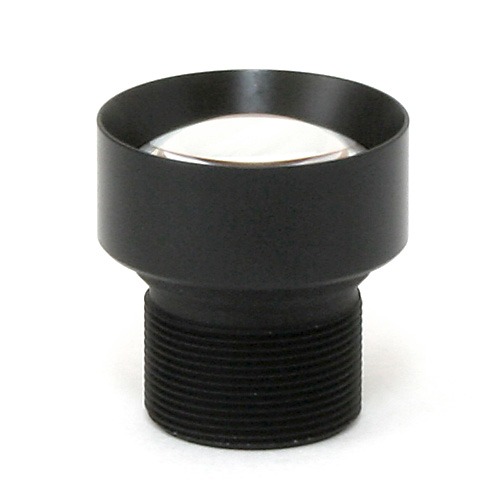

Lensagon BM8020S12

1 Megapixel S-Mount lens for 1/2 inch sensors, F2, f=8mm

 Compare
SKU: 00319 Category:

Product Description

The S-Mount lens Lensagon BM8020S12 is suitable for common sensors up to 1 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 8 mm
Aperture (f#) 2
Back Focal Length 8.7
Angle of View (D) 51.1°
Angle of View (H) 46.8°
Angle of View (V) 42.1°
Megapixel 1 MP
IR Cut Filter No
Weight 8 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

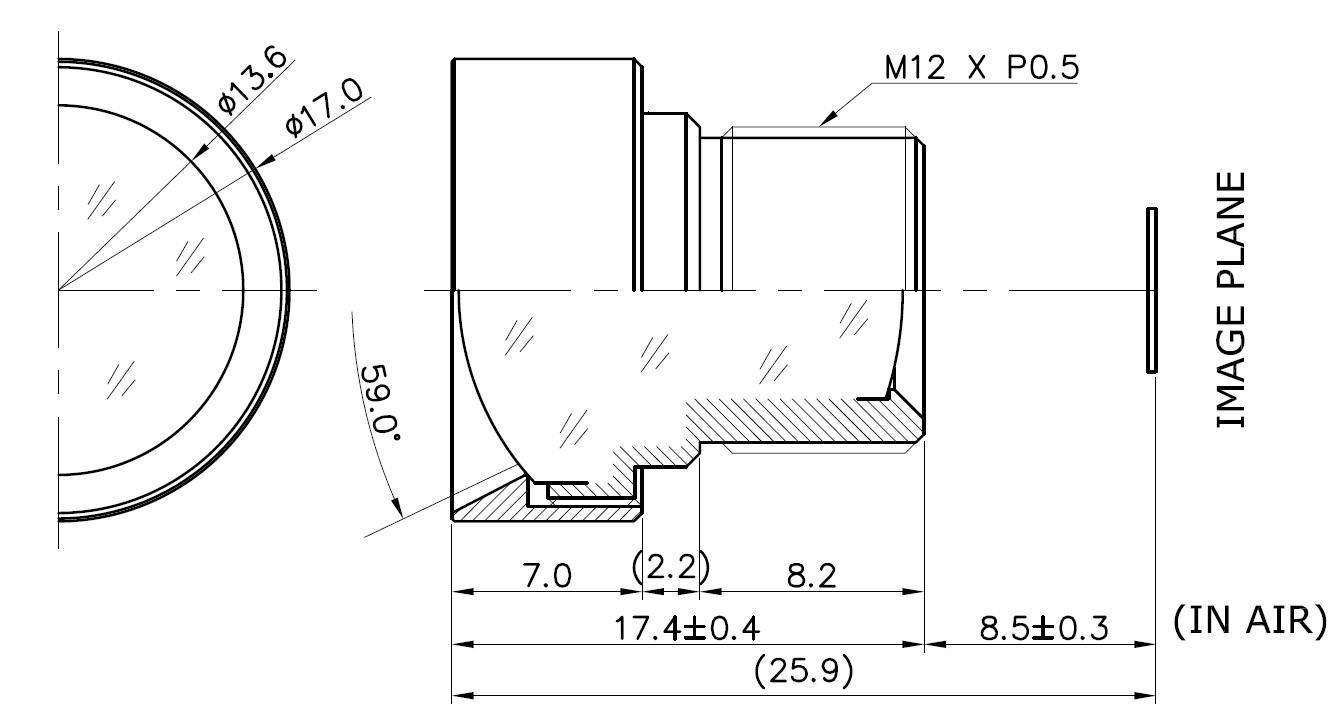

Technical Drawing:

Drawing
