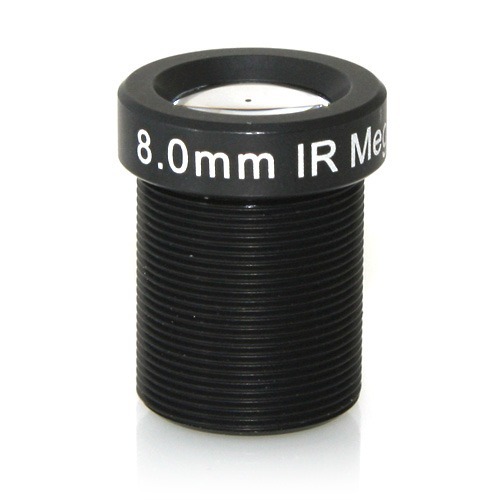

Lensagon BM8018

1 Megapixel S-Mount lens for 1/3 inch sensors, F1.8, f=8mm

 Compare
SKU: 00014 Category:

Product Description

The S-Mount lens Lensagon BM8018 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 8.00 mm
Aperture (f#) 1.80
MOD 0.20 m
Back Focal Length 5.40
Angle of View (D) 45.00° / H: 35.50° / V: 26.00°
Megapixel (max.) 1.00 MP
IR Correction Yes
Weight 6.00 g
Iris fixed
Focus fixed
Chief ray angle 2.50 °
Typ Standard
pdf

Additional Information


Drawing
