Lensagon BM3524S12NDC

Lensagon BM3524S12NDC

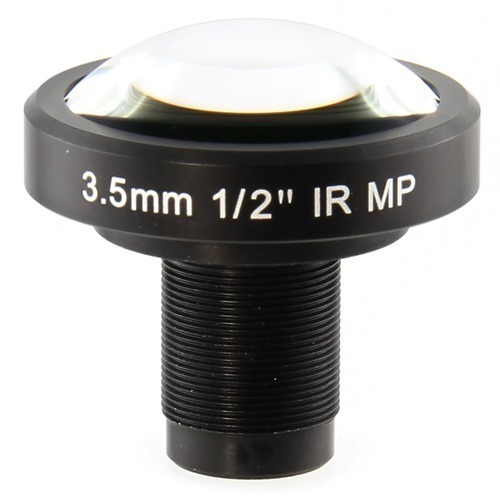

1 Megapixel S-Mount lens for 1/2 inch sensors, F2.4, f=3.5mm

 Compare
SKU: 10808 Category:

Product Description

The S-Mount lens Lensagon BM3524S12NDC is suitable for common sensors up to 1 megapixel with an image format of 1/2 inch.

Mount S-Mount
Sensor 1/2 inch
Focal Length 3.5 mm
Aperture (f#) 2.4
MOD 0.1 m
Back Focal Length 6.09
Angle of View (D) 97°
Megapixel (max.) 1 MP
IR Cut Filter Yes
Optical Distortion -3.1 %
Iris fixed
Focus fixed
Chief ray angle 6.3 °
pdf

Additional Information

Technical Drawing:

Drawing
