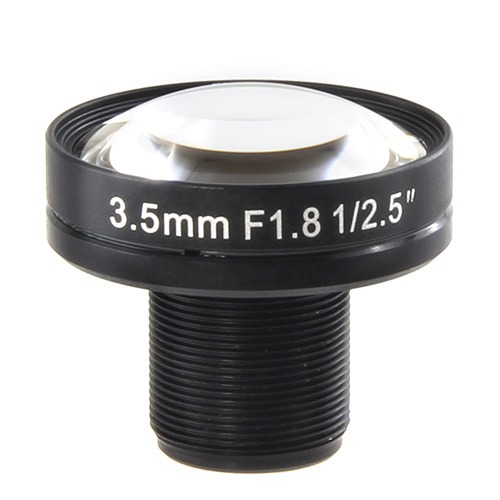

Lensagon BM3518S125NDC

Lensagon BM3518S125NDC

Megapixel S-Mount lens for 1/2.5 inch sensors, F1.8, f=3.5mm

 Compare
SKU: 00400 Category:

Product Description

The S-Mount lens Lensagon BM3518S125NDC is suitable for sensors below 1 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 3.5 mm
Aperture (f#) 1.8
MOD 0.2 m
Back Focal Length 5.99
Angle of View (D) 90°
IR Cut Filter Yes
Optical Distortion -1.5 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

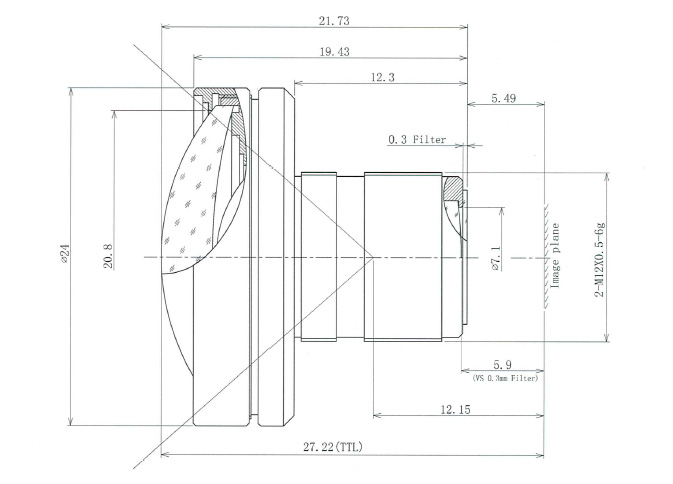

Technical Drawing:

Drawing
