Lensagon BM2920S118

Lensagon BM2920S118

1 Megapixel S-Mount lens for 1/1.8 inch sensors, F2.8, f=2.95mm

 Compare
SKU: 00752 Category:

Product Description

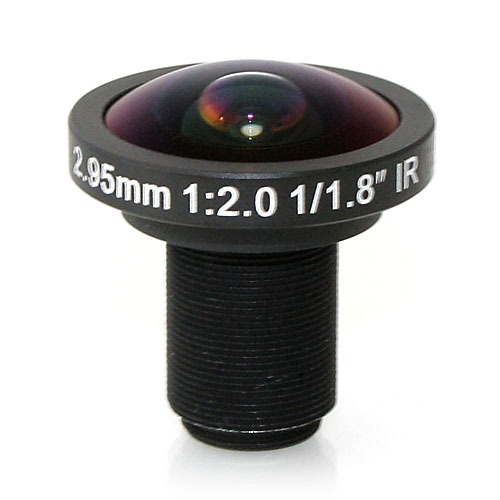

The S-Mount lens Lensagon BM2920S118 is suitable for common sensors up to 1 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 2.95 mm
Aperture (f#) 2.8
MOD 0.15 m
Back Focal Length 7.85
Angle of View (D) 178°
Megapixel 1 MP
IR Correction Yes
IR Cut Filter No
Optical Distortion -97 %
Image Circle 8.93 mm
Weight 13 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
