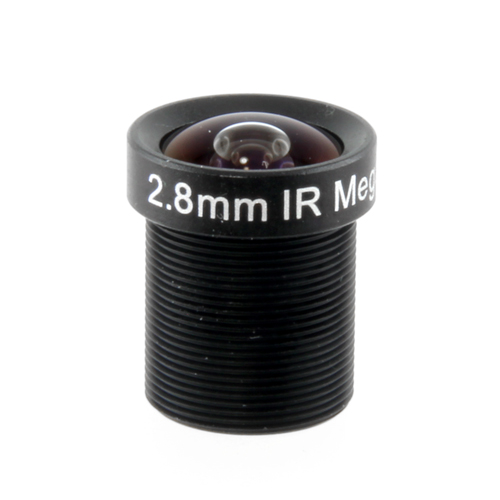

Lensagon BM2820

Lensagon BM2820

Megapixel S-Mount lens for 1/3 inch sensors, F2, f=2.8mm

 Compare
SKU: 00590 Category:

Product Description

The S-Mount lens Lensagon BM2820 is suitable for sensors below 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.8 mm
Aperture (f#) 2
MOD 0.2 m
Back Focal Length 5.29
Angle of View (D) 122°
IR Correction Yes
Optical Distortion -40 %
Weight 7 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
