BM2420

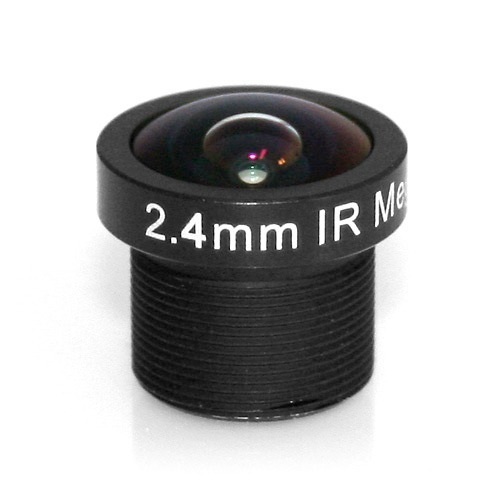

Lensagon BM2420

1 Megapixel S-Mount lens for 1/3 inch sensors, F2, f=2.4mm

 Compare
SKU: 00820 Category:

Product Description

The S-Mount lens Lensagon BM2420 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 2.4 mm
Aperture (f#) 2
MOD 0.15 m
Back Focal Length 4.56
Angle of View (D) 132°
Angle of View (H) 104°
Angle of View (V) 77°
Megapixel 1 MP
IR Correction Yes
Optical Distortion -25 %
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
