Lensagon BL6012

Lensagon BL6012

1 Megapixel S-Mount lens for 1/3 inch sensors, F1.2, f=6mm

 Compare
SKU: 00129 Category:

Product Description

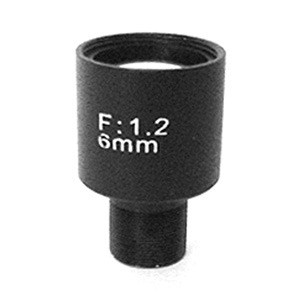

The S-Mount lens Lensagon BL6012 is suitable for common sensors up to 1 megapixel with an image format of 1/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/3 inch
Focal Length 6 mm
Aperture (f#) 1.2
MOD 0.2 m
Back Focal Length 6.96
Angle of View (D) 55.6°
Megapixel 1 MP
IR Cut Filter No
Weight 20 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
