Lensagon BK1220C

0.3 Megapixel S-Mount lens for 1/4 inch sensors, F2, f=1.2mm

 Compare
SKU: 01025 Category:

Product Description

The S-Mount lens Lensagon BK1220C is suitable for sensors below 1 megapixel with an image format of 1/4 inch. It is characterized by a particularly high light intensity.

MountS-Mount
Sensor1/4 inch
Focal Length1.2 mm
Aperture (f#)2
Back Focal Length3.4
Angle of View (D)192°
Megapixel0.3 MP
IR CorrectionNo
IR Cut FilterYes
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

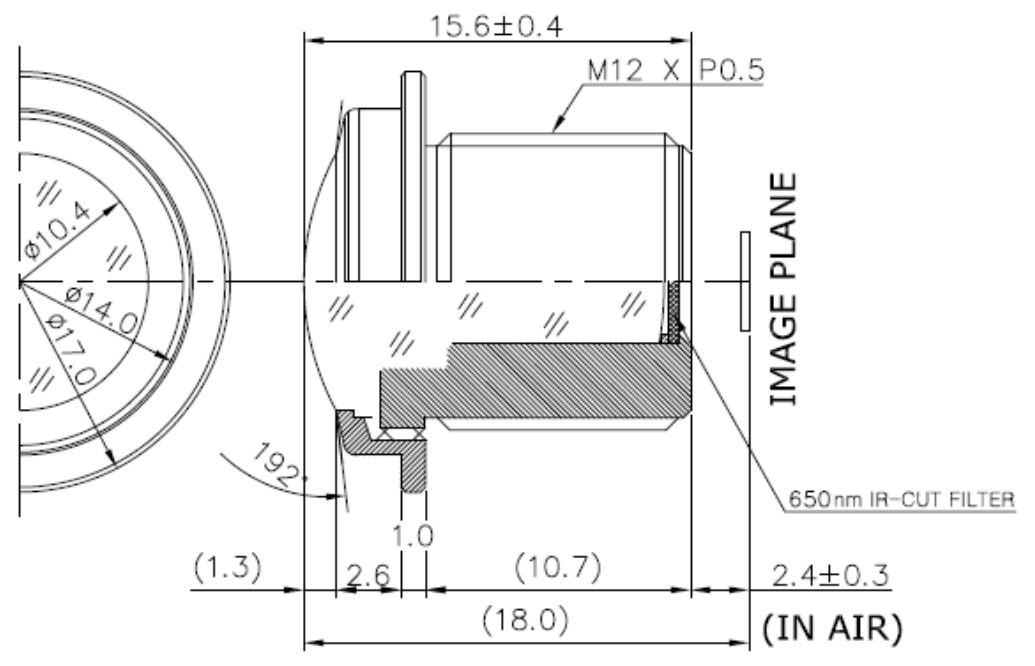

Technical Drawing:

Drawing
