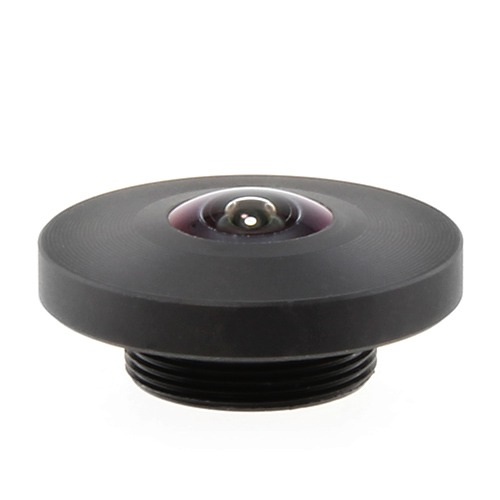

Lensagon BF13M0922S13C

Lensagon BF13M0922S13C

13 Megapixel Fisheye S-Mount lens for 1/3.2 inch sensors, F2.2, f=0.9mm

 Compare
SKU: 11188 Category:

Product Description

The S-Mount lens Lensagon BF13M0922S13C is suitable for current sensors up to 13 megapixel with an image format of 1/3.2 inch.

Mount S-Mount
Sensor 1/3.2 inch
Focal Length 0.9 mm
Aperture (f#) 2.2
MOD 0.1 m
Back Focal Length 2.01
Angle of View (D) 200°
Megapixel 13 MP
IR Cut Filter Yes
Image Circle 2.9 mm
Iris fixed
Focus fixed
Chief ray angle 10.2°
Typ Fisheye
pdf

Additional Information

Technical Drawing:

Drawing
