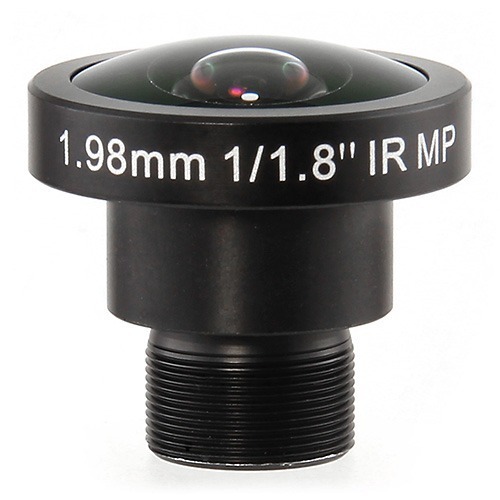

Lensagon BF10M19828S118

Lensagon BF10M19828S118

10 Megapixel Fisheye S-Mount lens for 1/1.8 inch sensors, F2.8, f=1.98mm

 Compare
SKU: 10812 Category:

Product Description

The S-Mount lens Lensagon BF10M19828S118 is suitable for current sensors up to 10 megapixel with an image format of 1/1.8 inch.

MountS-Mount
Sensor1/1.8 inch
Focal Length1.98 mm
Aperture (f#)2.8
MOD0.1 m
Back Focal Length6.22
Angle of View (D)180°
Megapixel10 MP
IR CorrectionYes
IR Cut FilterNo
Image Circle5.6 mm
Weight15 g
Irisfixed
Focusfixed
Chief ray angle12°
TypFisheye
pdf

Additional Information

Technical Drawing:

Drawing
