Lensagon B8M4418S23

8.00 Megapixel S-Mount lens for 2/3 inch sensors, F1.80, f=4.41mm

 Compare
SKU: 11548 Category:

Product Description

The S-Mount lens Lensagon B8M4418S23 is suitable for current sensors up to 8.00 megapixel with an image format of 2/3 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 2/3 inch
Focal Length 4.41 mm
Aperture (f#) 1.80
Angle of View (D) 139.60° / H: 120.40° / V: 66.40°
Megapixel (max.) 8.00 MP
IR Cut Filter No
TV Distortion -18.00
Weight 8.00 g
Chief ray angle 11.00 °
Typ Standard
pdf

Additional Information

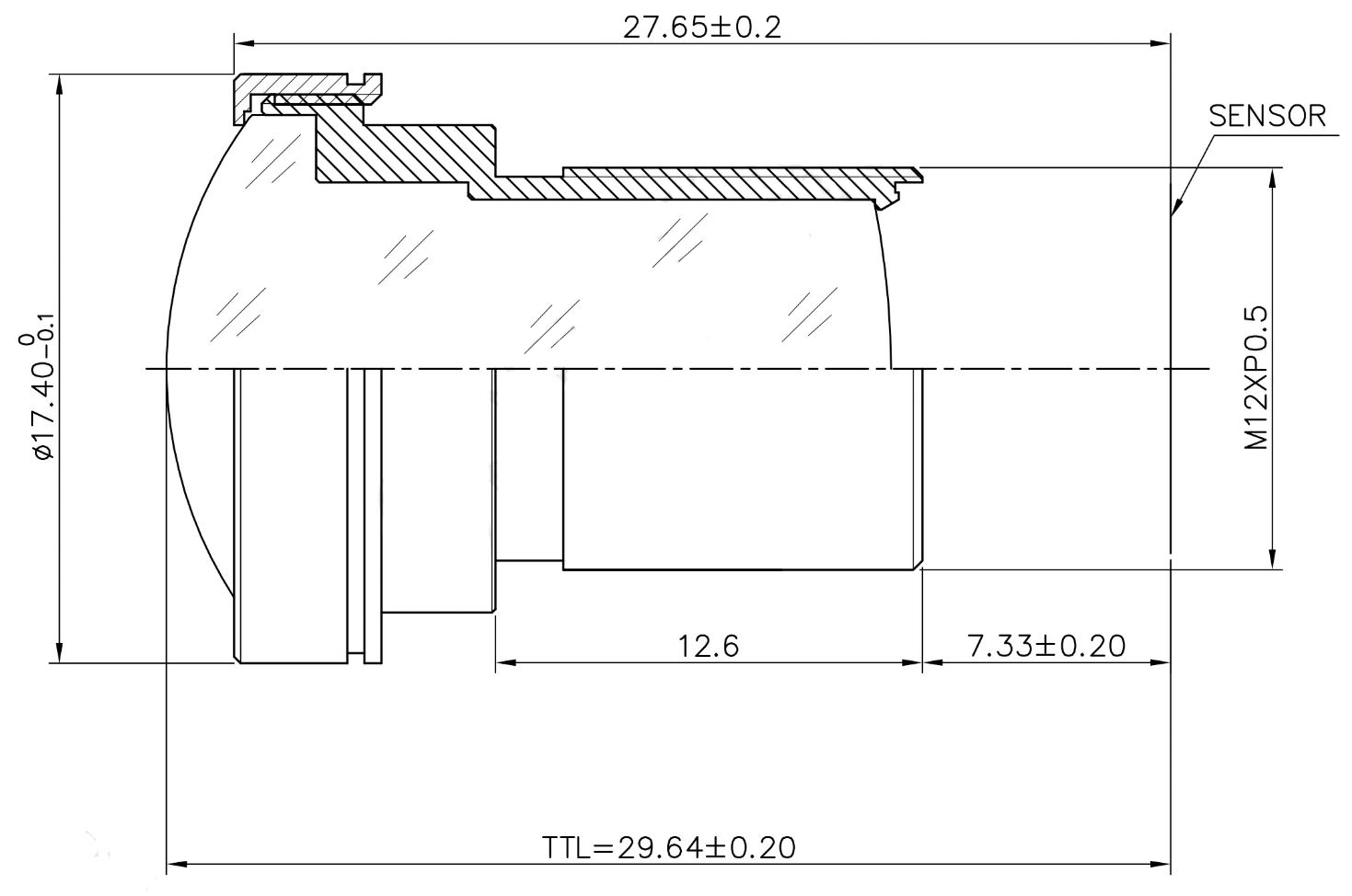

Drawing
