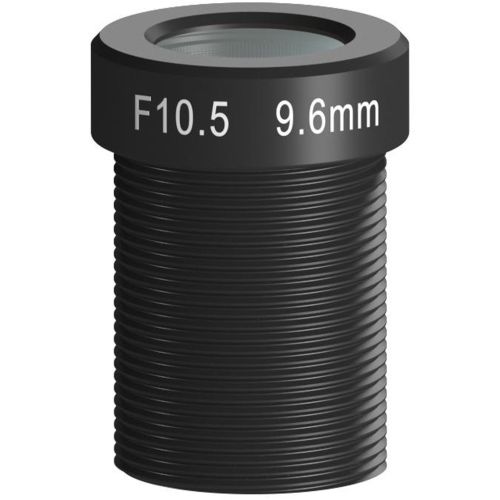

Lensagon B6M96105S118
6.0 Megapixel S-Mount lens for 1/1.8 inch sensors, F10.50, f=9.60mm, MOD 0.100m
Product Description
The S-Mount lens Lensagon B6M96105S118 is suitable for current sensors up to 6.0 megapixel with an image format of 1/1.8 inch.
| Mount | S-Mount |
| Sensor | 1/1.8 inch |
| Focal Length | 9.60 mm |
| Aperture (f#) | 10.50 |
| MOD | 0.100 m |
| Back Focal Length | 4.45 |
| Angle of View (D) | 48.70° / H: 39.80° / V: 30.40° |
| Megapixel (max.) | 6.0 MP |
| IR Cut Filter | No |
| Optical Distortion | 0.20 % |
| Chief ray angle | 18.01 ° |
