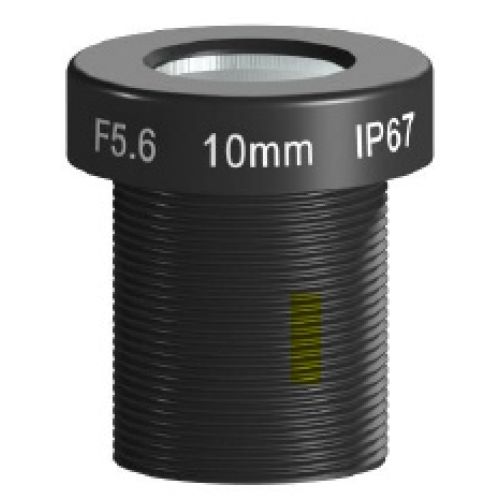

Lensagon B6M10056S118FTWPC
6.0 Megapixel S-Mount lens for 1/1.8 inch sensors, F5.60, f=10.00mm, MOD 0.100m
Product Description
The S-Mount lens Lensagon B6M10056S118FTWPC is suitable for current sensors up to 6.0 megapixel with an image format of 1/1.8 inch.
| Mount | S-Mount |
| Sensor | 1/1.8 inch |
| Focal Length | 10 mm |
| Aperture (f#) | 5.60 |
| MOD | 0.100 m |
| Back Focal Length | 4.85 |
| Angle of View (D) | 48.60° / H: 39.70° / V: 30.40° |
| Megapixel (max.) | 6.0 MP |
| IR Cut Filter | Yes |
| Optical Distortion | -0.50 % |
| Iris | fixed |
| Focus | fixed |
| Chief ray angle | 18.19 ° |
