Lensagon B5M29740NDC

Lensagon B5M29740NDC

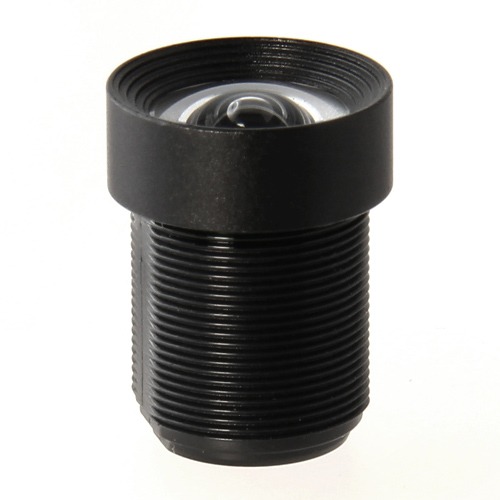

5 Megapixel S-Mount lens for 1/2.5 inch sensors, F4, f=2.97mm

 Compare
SKU: 10297 Category:

Product Description

The S-Mount lens Lensagon B5M29740NDC is suitable for common sensors up to 5 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 2.97 mm
Aperture (f#) 4
MOD 0.2 m
Back Focal Length 3.5
Angle of View (D) 102°
Megapixel (max.) 5 MP
IR Cut Filter Yes
Optical Distortion 1 %
Weight 3.5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
