Lensagon B5M12056

Lensagon B5M12056

5 Megapixel S-Mount lens for 1/1.8 inch sensors, F5.6, f=12mm

 Compare
SKU: 00058 Category:

Product Description

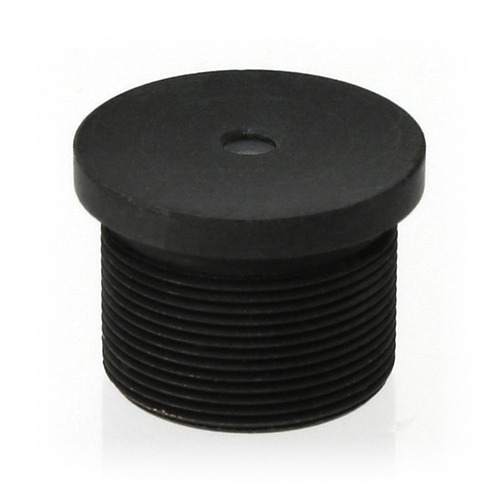

The S-Mount lens Lensagon B5M12056 is suitable for common sensors up to 5 megapixel with an image format of 1/1.8 inch.

Mount S-Mount
Sensor 1/1.8 inch
Focal Length 12 mm
Aperture (f#) 5.6
MOD 0.1 m
Back Focal Length 8.567
Angle of View (D) 41°
Megapixel 5 MP
IR Cut Filter No
Optical Distortion -1.75 %
Image Circle 9 mm
Weight 5 g
Iris fixed
Focus fixed
Chief ray angle 13.7°
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
