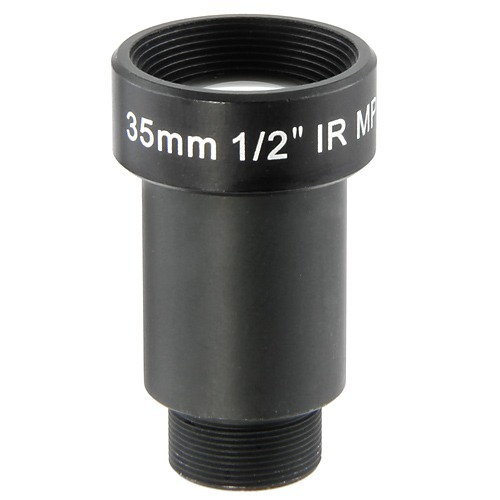

Lensagon B3M35025C

Lensagon B3M35025C

3 Megapixel S-Mount lens for 1/2 inch sensors, F2.5, f=35mm

 Compare
SKU: 10319 Category:

Product Description

The S-Mount lens Lensagon B3M35025C is suitable for common sensors up to 3 megapixel with an image format of 1/2 inch.

Mount S-Mount
Sensor 1/2 inch
Focal Length 35 mm
Aperture (f#) 2.5
MOD 0.4 m
Back Focal Length 14.49
Angle of View (D) 13.1°
Megapixel 3 MP
IR Cut Filter Yes
Iris fixed
Focus fixed
pdf

Additional Information

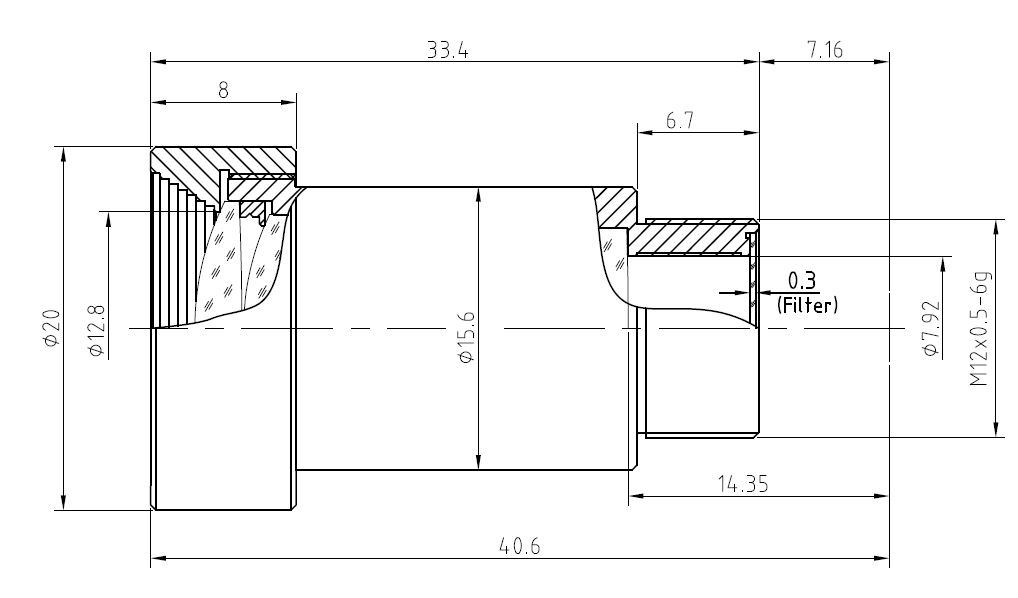

Technical Drawing:

Drawing
