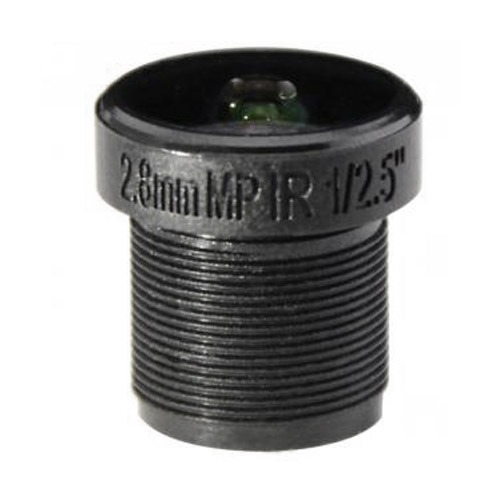

Lensagon B3M2818

Lensagon B3M2818

3 Megapixel S-Mount lens for 1/2.5 inch sensors, F2.2, f=2.8mm

 Compare
SKU: 10279 Category:

Product Description

The S-Mount lens Lensagon B3M2818 is suitable for common sensors up to 3 megapixel with an image format of 1/2.5 inch.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 2.8 mm
Aperture (f#) 2.2
MOD 0.3 m
Back Focal Length 6.2
Angle of View (D) 144°
Megapixel 3 MP
IR Correction Yes
IR Cut Filter No
TV Distortion -19
Image Circle 7.2 mm
Weight 5 g
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

Technical Drawing:

Drawing
