Lensagon B3M21835ND

Lensagon B3M21835ND

3 Megapixel S-Mount lens for 1/4 inch sensors, F3.5, f=2mm

 Compare
SKU: 10817 Category:

Product Description

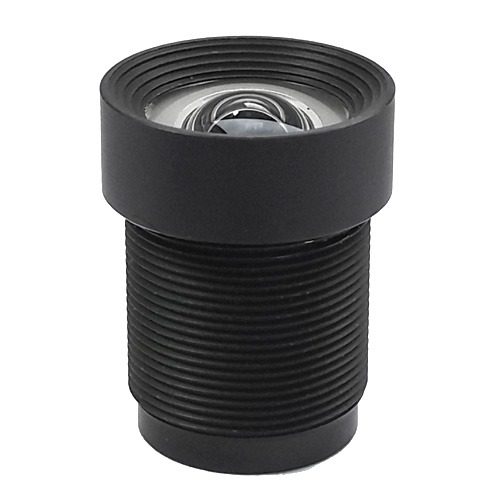

The S-Mount lens Lensagon B3M21835ND is suitable for common sensors up to 3 megapixel with an image format of 1/4 inch.

Mount S-Mount
Sensor 1/4 inch
Focal Length 2 mm
Aperture (f#) 3.5
MOD 0.1 m
Back Focal Length 1.97
Angle of View (D) 97°
Megapixel 3 MP
IR Cut Filter Yes
Optical Distortion -0.6 %
Iris fixed
Focus fixed
Chief ray angle 15°
pdf

Additional Information

Technical Drawing:

Drawing
