Lensagon B3M16018C

Lensagon B3M16018C

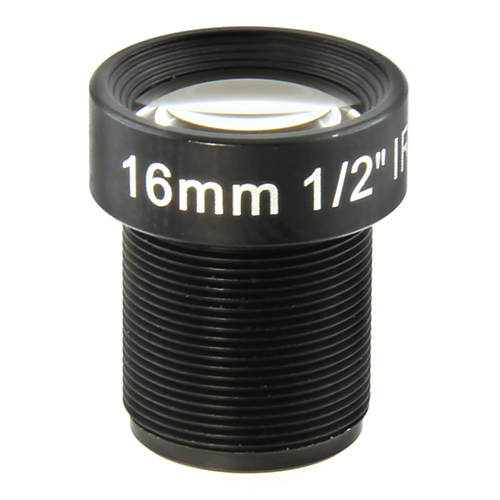

3 Megapixel S-Mount lens for 1/2 inch sensors, F1.8, f=16mm

 Compare
SKU: 10172 Category:

Product Description

The S-Mount lens Lensagon B3M16018C is suitable for common sensors up to 3 megapixel with an image format of 1/2 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2 inch
Focal Length 16 mm
Aperture (f#) 1.8
MOD 0.35 m
Back Focal Length 7.3
Angle of View (D) 27.8°
Megapixel 3 MP
IR Cut Filter Yes
Optical Distortion -0.65 %
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

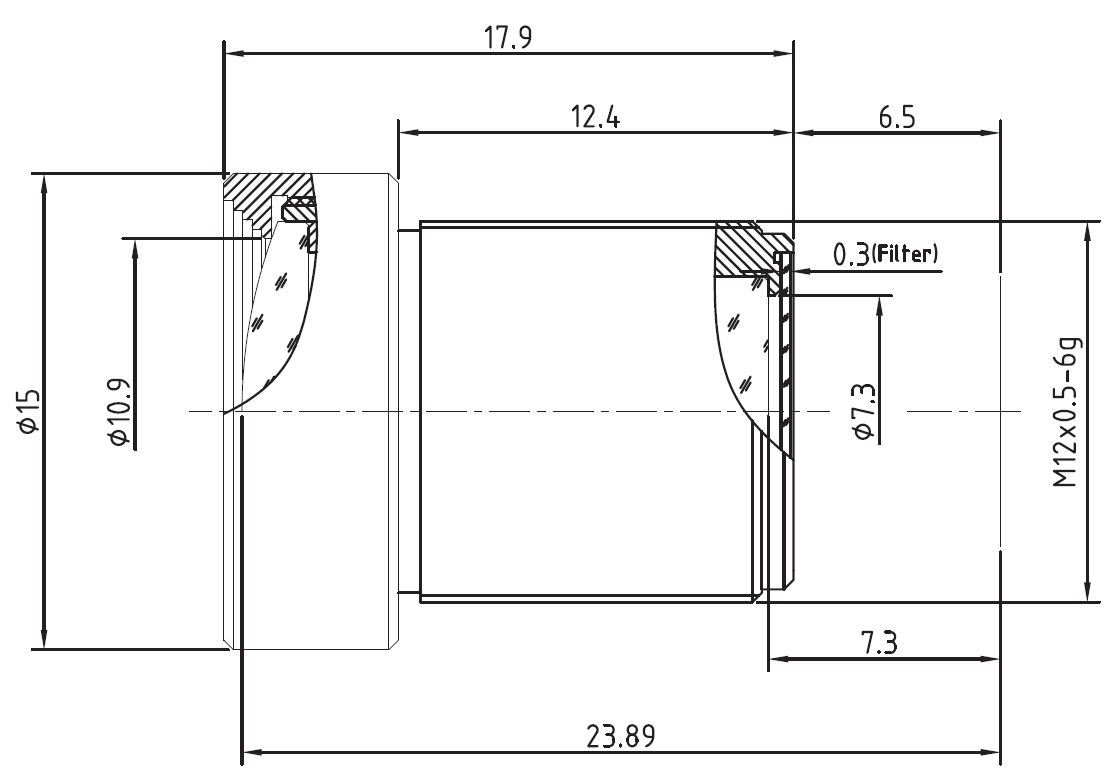

Technical Drawing:

Drawing
