B2M3814C

Lensagon B2M3814C

2 Megapixel S-Mount lens for 1/2.5 inch sensors, F1.4, f=3.85mm

 Compare
SKU: 00272 Category:

Product Description

The S-Mount lens Lensagon B2M3814C is suitable for common sensors up to 2 megapixel with an image format of 1/2.5 inch. It is characterized by a particularly high light intensity.

Mount S-Mount
Sensor 1/2.5 inch
Focal Length 3.85 mm
Aperture (f#) 1.4
Back Focal Length 6.76
Angle of View (D) 121.9°
Angle of View (H) 91.1°
Angle of View (V) 56°
Megapixel 2 MP
IR Cut Filter Yes
Image Circle 7.2 mm
Iris fixed
Focus fixed
Typ Standard
pdf

Additional Information

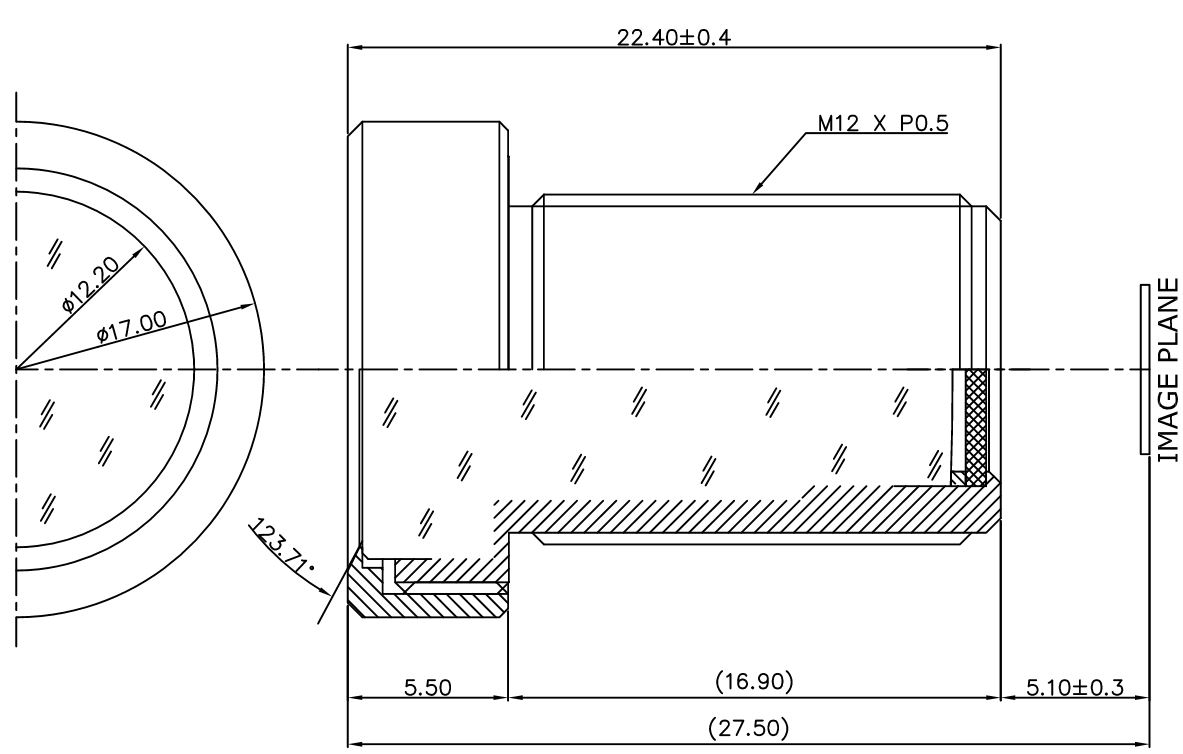

Technical Drawing:

Drawing
