Lensagon B2M10030N2C

Lensagon B2M10030N2C

2 Megapixel S-Mount lens for 1/2 inch sensors, F3, f=10.3mm

 Compare
SKU: 09992 Category:

Product Description

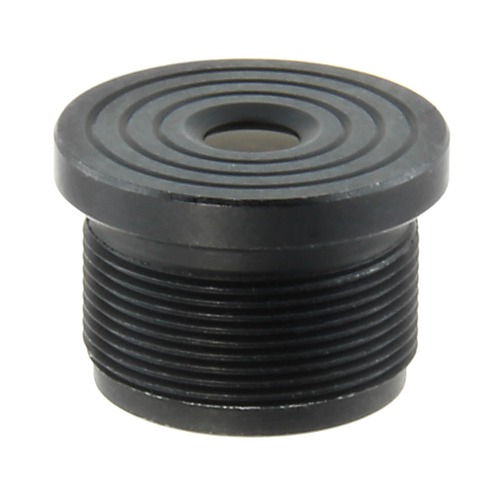

The S-Mount lens Lensagon B2M10030N2C is suitable for common sensors up to 2 megapixel with an image format of 1/2 inch.

MountS-Mount
Sensor1/2 inch
Focal Length10.3 mm
Aperture (f#)3
MOD0.2 m
Back Focal Length8.77
Angle of View (D)41.5°
Megapixel2 MP
IR Cut FilterYes
Optical Distortion2.1 %
Irisfixed
Focusfixed
TypStandard
pdf

Additional Information

Technical Drawing:

Drawing
