Product Description
The S-Mount lens Lensagon B12M8018S117 is suitable for current sensors up to 12.00 megapixel with an image format of 1/1.7 inch. It is characterized by a particularly high light intensity.
| Mount | S-Mount |
|---|---|
| Sensor | 1/1.7 inch |
| Focal Length | 8.00 mm |
| Aperture (f#) | 1.80 |
| MOD | 0.30 m |

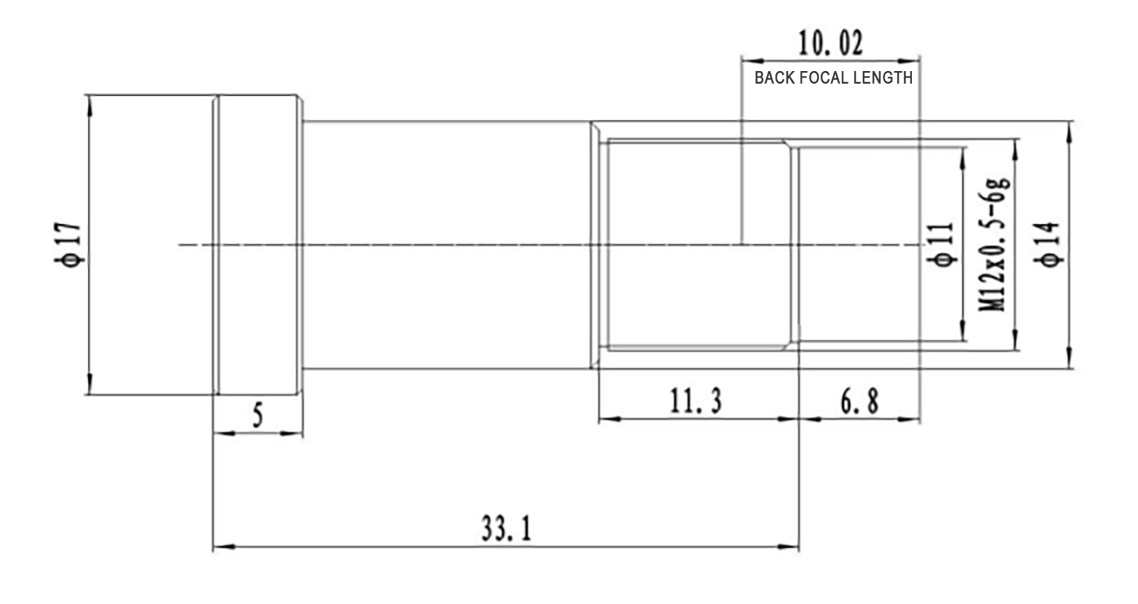

| Back Focal Length | 10.02 |
| Angle of View (D) | 72.64° / H: 57.12° / V: 42.44° |
| Megapixel (max.) | 12.00 MP |
| IR Correction | Yes |
| Optical Distortion | -15.68 % |
| Image Circle | 9.68 mm |
| Weight | 12.00 g |
| Iris | fixed |
| Chief ray angle | 10.80 ° |
| Typ | Standard |
