Product Description

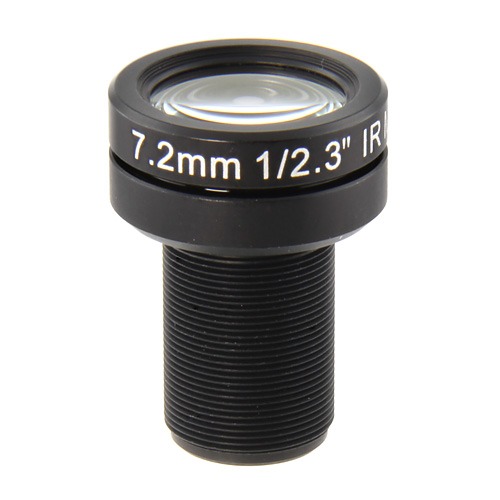

The S-Mount lens Lensagon B10M7224 is suitable for current sensors up to 10 megapixel with an image format of 1/2.3 inch.
| Mount | S-Mount |
|---|---|
| Sensor | 1/2.3 inch |
| Focal Length | 7.2 mm |
| Aperture (f#) | 2.4 |
| MOD | 0.33 m |
| Back Focal Length | 7.23 |
| Angle of View (D) | 57° |
| Angle of View (H) | 47° |
| Angle of View (V) | 37° |
| Megapixel | 10 MP |
| IR Correction | Yes |
| Optical Distortion | 1.5 % |
| Weight | 11.6 g |
| Iris | fixed |
| Focus | fixed |
| Typ | Standard |
Additional Information
Technical Drawing:
