Lensagon TL4K-05-237I

Linescan Object Side Telecentric Lens for 4K (7µm) sensor, Magnification: 0.5x, WD 237mm, F# 6.25, NA 0.4, DOF 700um, Opt.Dist. 0.08

 Compare
SKU: 10170 Category:

Product Description

The Object Side Telecentric Lens TL4K-05-237I is suitable for sensors with an image format of 4K (7µm).

Magnification 0.5
Mount F-Mount
Aperture 6.25
Working Distance (WD) 237 mm
Depth of Field (DOF) 700 μm
Resolution (Object Side) 8.4 μm
Numerical Aperture (NA) 0.4
Image Format (max.) 4K (7µm)
Field of View (FOV) 57.34mm@ 4K CCD
Lens Type Object Side
Telecentricity 0.03
Optical Distortion (max.) 0.08 %
Special Feature Linescan
pdf

Additional Information

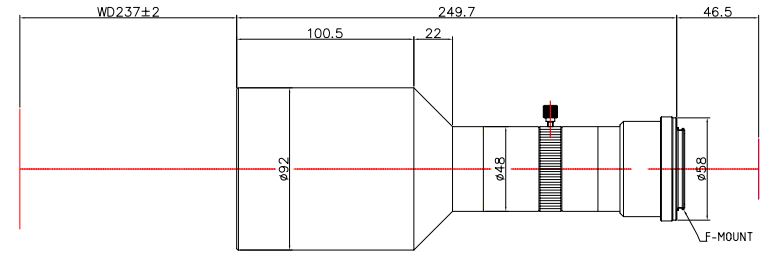

Technical Drawing:

Drawing
