Lensagon TF8MHR-20-50

Lensagon TF8MHR-20-50

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 2x, WD 50mm, F# 8.9, NA 0.112, DOF 98um, Opt.Dist. 0.04

 Compare
SKU: 10741 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-20-50 is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification2 x
Working Distance (WD)50 mm
Depth of Field (DOF)98 μm @ 22 μm
Resolution (Object Side)3 μm
Image Format (max.)23mm (diagonal)
Megapixel (max.)8 MP
Working F-Number8.9
Numerical Aperture (NA)0.112
Field of View (FOV)9.1mm x 6.8mm
Telecentric TypeObject Side
Telecentricity0.03 °
Optical Distortion (max.)0.04 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

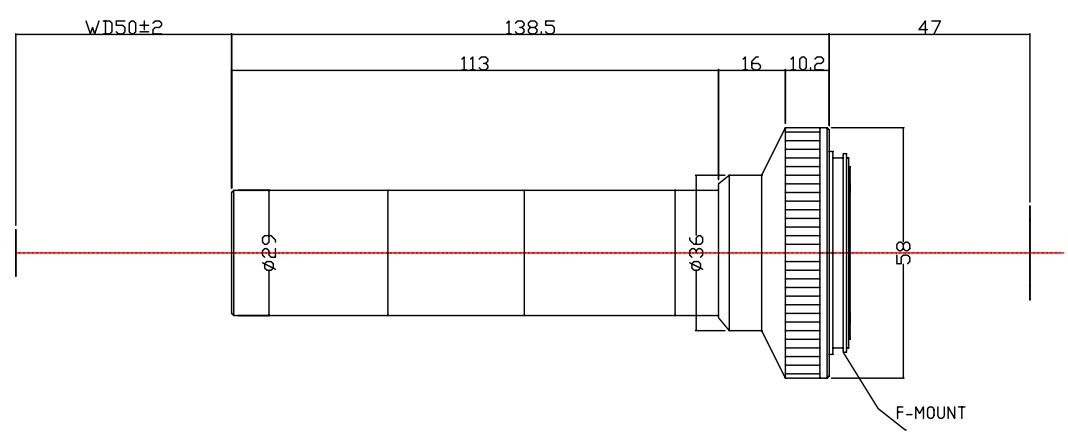

Drawing
