Lensagon TF8MHR-07-130I

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.7x, WD 130mm, F# 5.3, NA 0.066, DOF 476um, Opt.Dist. 0.05

 Compare
SKU: 10501 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-07-130I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification 0.7 x
Working Distance (WD) 130 mm
Depth of Field (DOF) 476 μm @ 22 μm
Resolution (Object Side) 5.1 μm
Image Format (max.) 23mm (diagonal)
Megapixel (max.) 8 MP
Working F-Number 5.3
Numerical Aperture (NA) 0.066
Field of View (FOV) 25.9mm x 19.4mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.05 %
Mount F-Mount *

* Other mounts are available on request.

pdf

Additional Information

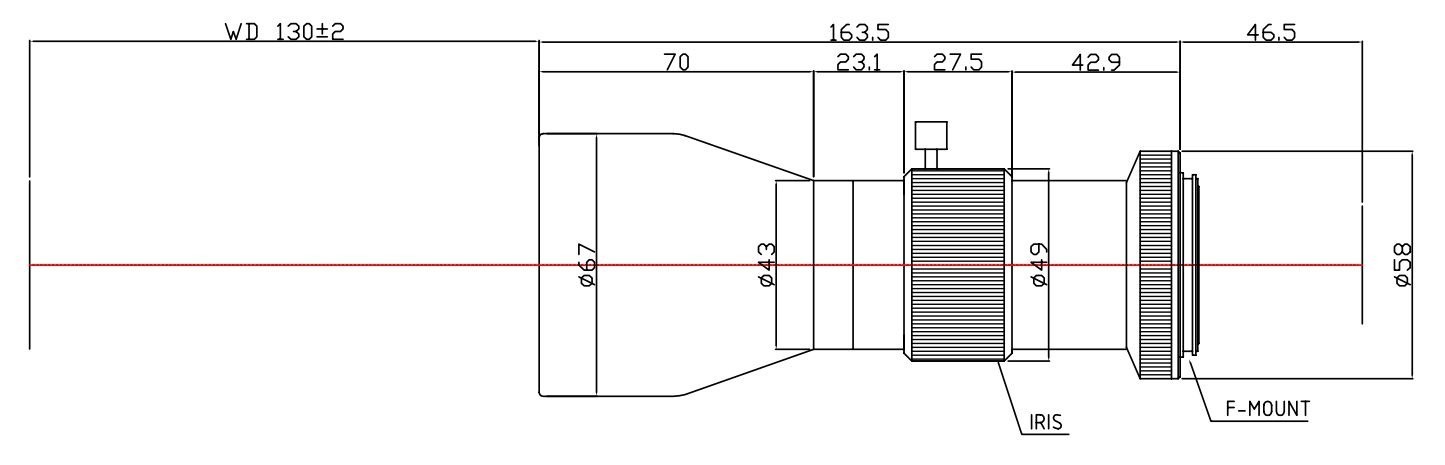

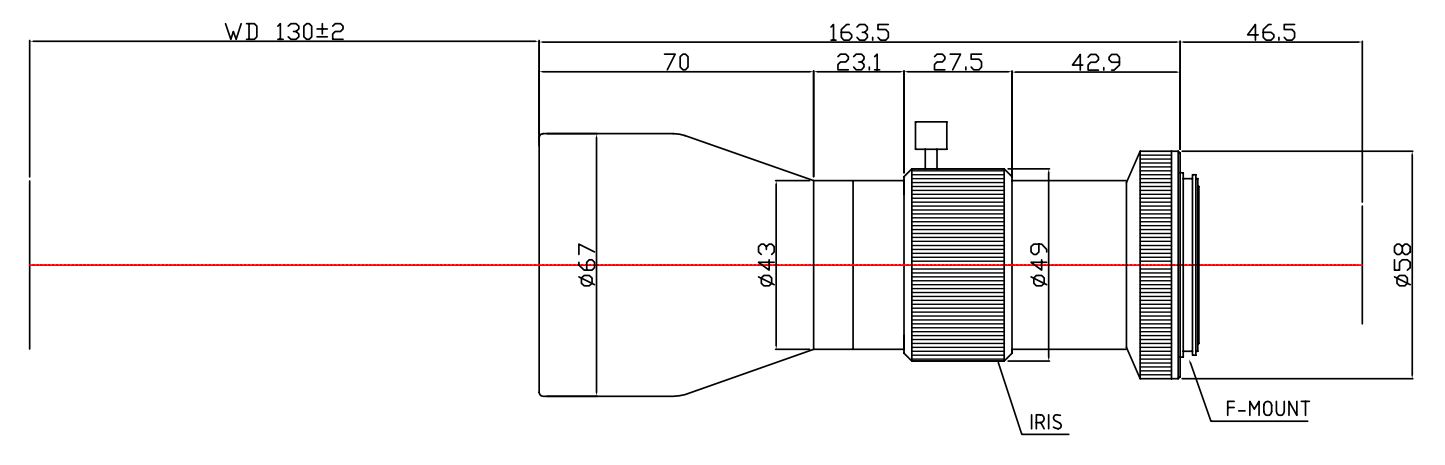

Drawing
