Lensagon TF8MHR-06-258I

Super High Res Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.6x, WD 258mm, F# 5, NA 0.06, DOF 611um, Opt.Dist. 0.08

 Compare
SKU: 10733 Category:

Product Description

The Object Side Telecentric Lens TF8MHR-06-258I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification 0.6 x
Working Distance (WD) 258 mm
Depth of Field (DOF) 611 μm @ 22 μm
Resolution (Object Side) 6 μm
Image Format (max.) 23mm (diagonal)
Megapixel (max.) 8 MP
Working F-Number 5
Numerical Aperture (NA) 0.06
Field of View (FOV) 30.2mm x 22.7mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.08 %
Mount F-Mount *

* Other mounts are available on request.

pdf

Additional Information

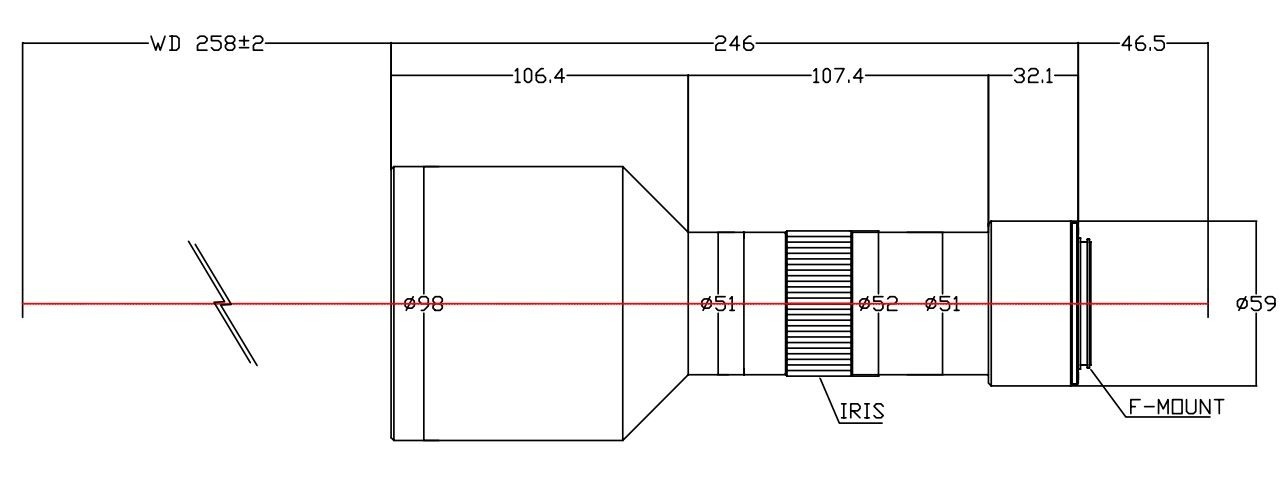

Drawing
