Lensagon TF8M-042-130I

Lensagon TF8M-042-130I

Standard Object Side Telecentric Lens for 23mm (diagonal) sensor, Magnification: 0.42x, WD 130mm, F# 10, NA 0.021, DOF 2500um, Opt.Dist. 0.1

 Compare
SKU: 10731 Category:

Product Description

The Object Side Telecentric Lens TF8M-042-130I is suitable for sensors up to 8 megapixel and with an image format of 23mm (diagonal).

Magnification0.42 x
Working Distance (WD)130 mm
Depth of Field (DOF)2.5 mm @ 22 μm
Resolution (Object Side)16 μm
Image Format (max.)23mm (diagonal)
Megapixel (max.)8 MP
Working F-Number10
Numerical Aperture (NA)0.021
Field of View (FOV)43.2mm x 32.4mm
Telecentric TypeObject Side
Telecentricity0.023 °
Optical Distortion (max.)0.1 %
MountF-Mount *

* Other mounts are available on request.

pdf

Additional Information

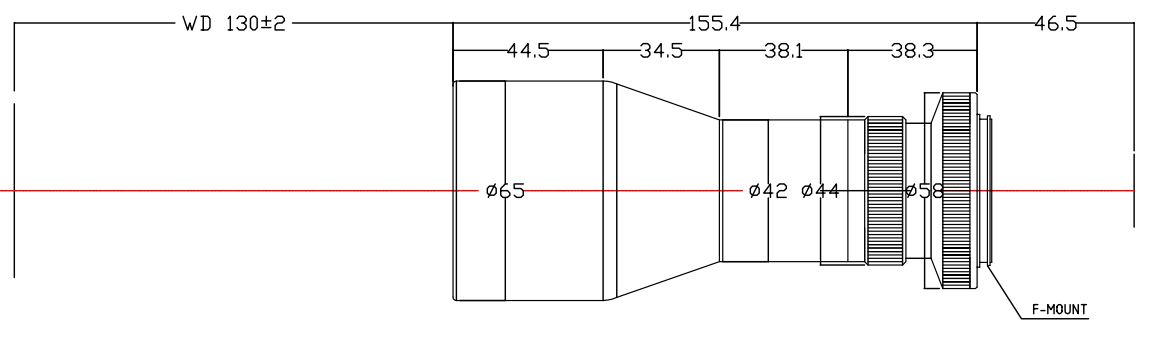

Drawing
