Lensagon TDC-035-72

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.35x, WD 72mm, F# 7.5, NA 0.0233, DOF 4900um, Opt.Dist. 0.05

 Compare
SKU: 10743 Category:

Product Description

The Double Side Telecentric Lens TDC-035-72 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.35 x
Working Distance (WD) 72 mm
Depth of Field (DOF) 4.9 mm @ 40 μm
Resolution (Object Side) 14 μm
Image Format (max.) 2/3 inch
Working F-Number 7.5
Numerical Aperture (NA) 0.0233
Field of View (FOV) 25.14mm x 18.85mm @2/3″
Telecentric Type Double Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

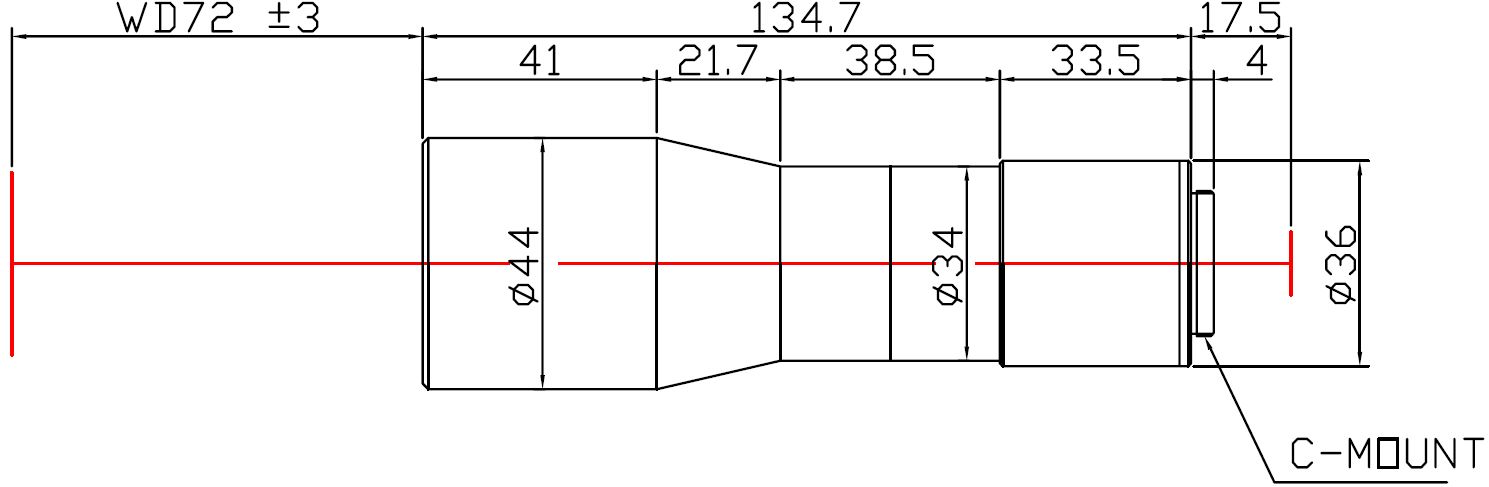

Drawing

Lensagon TDC-035-72

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.35x, WD 72mm, F# 7.5, NA 0.0233, DOF 4.9um, Opt.Dist. 0.04

 Compare
SKU: 10027 Category:

Product Description

The Double Side Telecentric Lens TDC-035-72 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.35 x
Mount C-Mount *
Working F-Number 7.5
Working Distance (WD) 72 mm
Depth of Field (DOF) 4.9 μm
Resolution (Object Side) 14 μm
Numerical Aperture (NA) 0.0233
Image Format (max.) 2/3 inch
Telecentric Type Double Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.04 %
Special Feature Standard

* Other mounts are available on request.

pdf

Additional Information

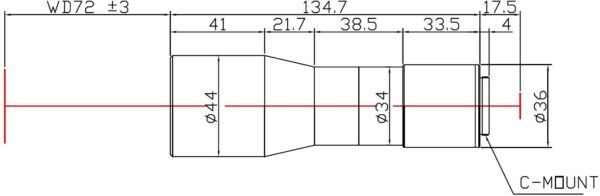

Drawing
