Lensagon TDC-0184-135

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.184x, WD 135mm, F# 7.5, NA 0.0122, DOF 17700um, Opt.Dist. 0.04

 Compare
SKU: 10029 Category:

Product Description

The Double Side Telecentric Lens TDC-0184-135 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.184 x
Working Distance (WD) 135.00 mm
Depth of Field (DOF) 17.7 mm @ 40.00 μm
Resolution (Object Side) 27.00 μm
Image Format (max.) 2/3 inch
Working F-Number 7.50
Numerical Aperture (NA) 0.0122
Field of View (FOV) 47.82mm x 35.86mm @2/3″
Telecentric Type Double Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.04 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

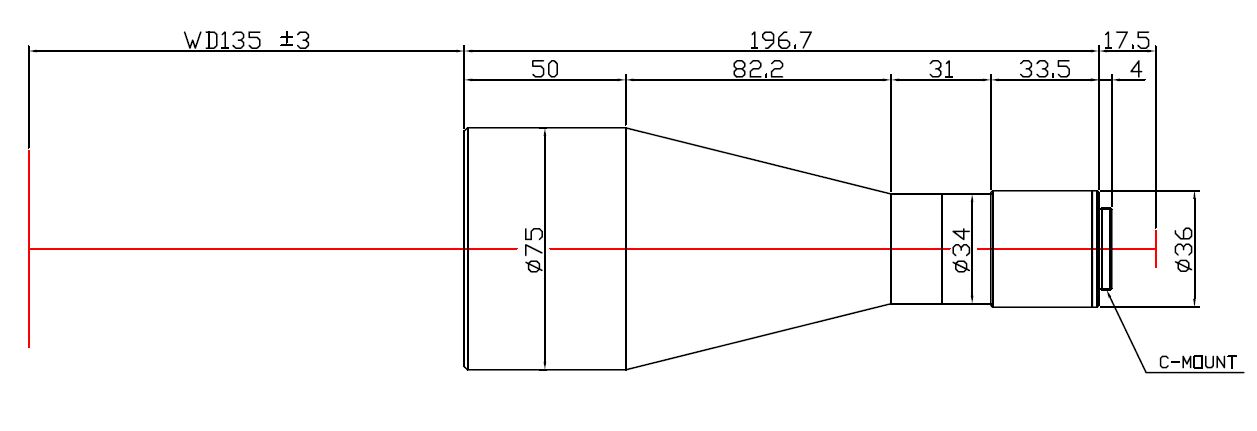

Drawing
