Lensagon TDC-0157-160

Standard Double Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.157x, WD 160mm, F# 7.5, NA 0.0104, DOF 24300um, Opt.Dist. 0.05

 Compare
SKU: 10174 Category:

Product Description

The Double Side Telecentric Lens TDC-0157-160 is suitable for sensors with an image format of 2/3 inch.

Magnification 0.157 x
Working Distance (WD) 160 mm
Depth of Field (DOF) 24.3 mm @ 40 μm
Resolution (Object Side) 32 μm
Image Format (max.) 2/3 inch
Working F-Number 7.5
Numerical Aperture (NA) 0.0104
Field of View (FOV) 56.05mm x 42.03mm @2/3″
Telecentric Type Double Side
Telecentricity 0.05 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

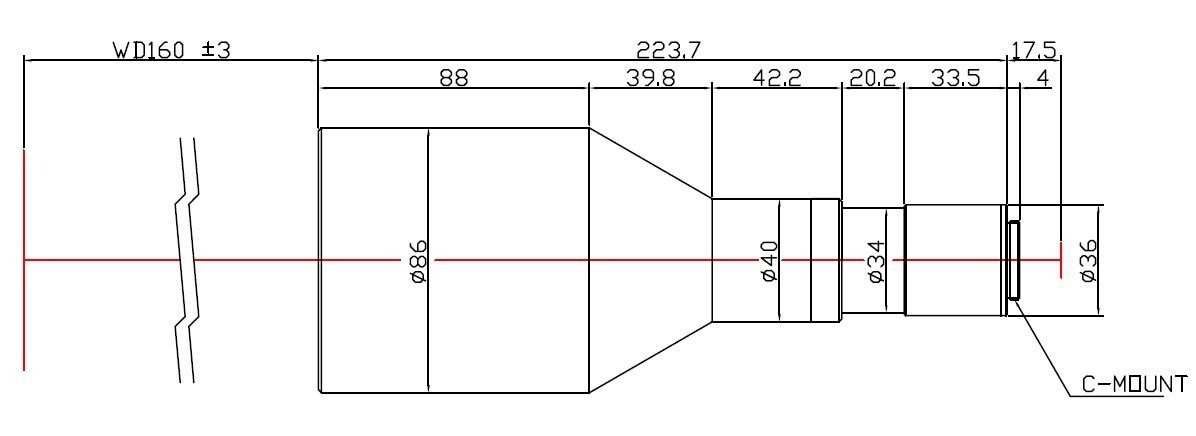

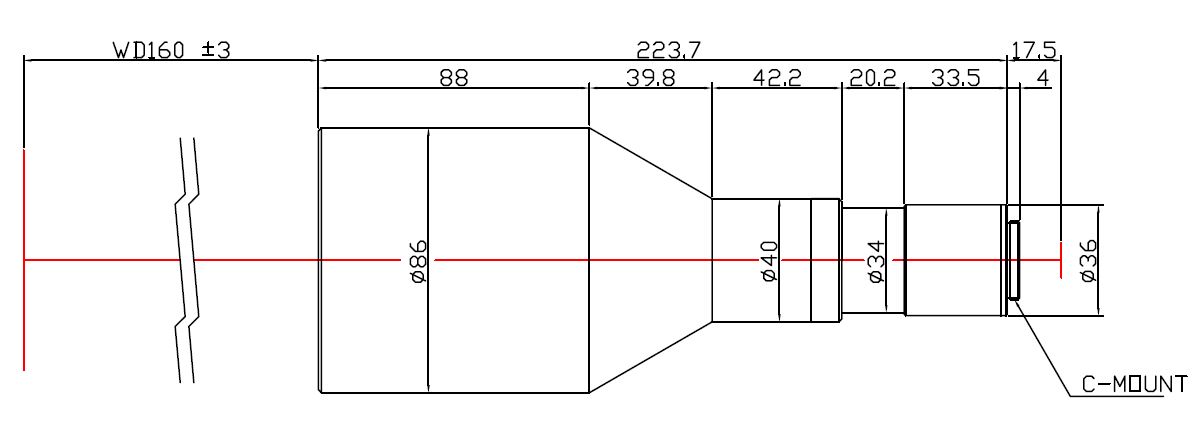

Drawing
