Lensagon TDC-0044-398
Standard Double Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.044x, WD 398mm, F# 7.5, NA 0.0029, DOF 310000um, Opt.Dist. 0.03
Product Description
The Double Side Telecentric Lens TDC-0044-398 is suitable for sensors with an image format of 1/2 inch.
| Magnification | 0.044 |
|---|---|
| Mount | C-Mount |
| Working F-Number | 7.5 |
| Working Distance (WD) | 398 mm |
| Depth of Field (DOF) | 310 mm |
| Resolution (Object Side) | 116 μm |
| Numerical Aperture (NA) | 0.0029 |
| Image Format (max.) | 1/2 inch |
| Field of View (FOV) | 144.45mm x 109.09mm@1/2″ CCD |
| Lens Type | Double Side |
| Telecentricity | 0.05 |
| Optical Distortion (max.) | 0.03 % |
| Special Feature | Standard |
Additional Information

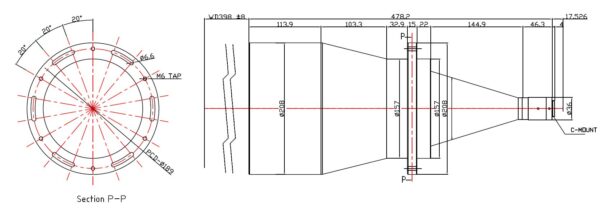

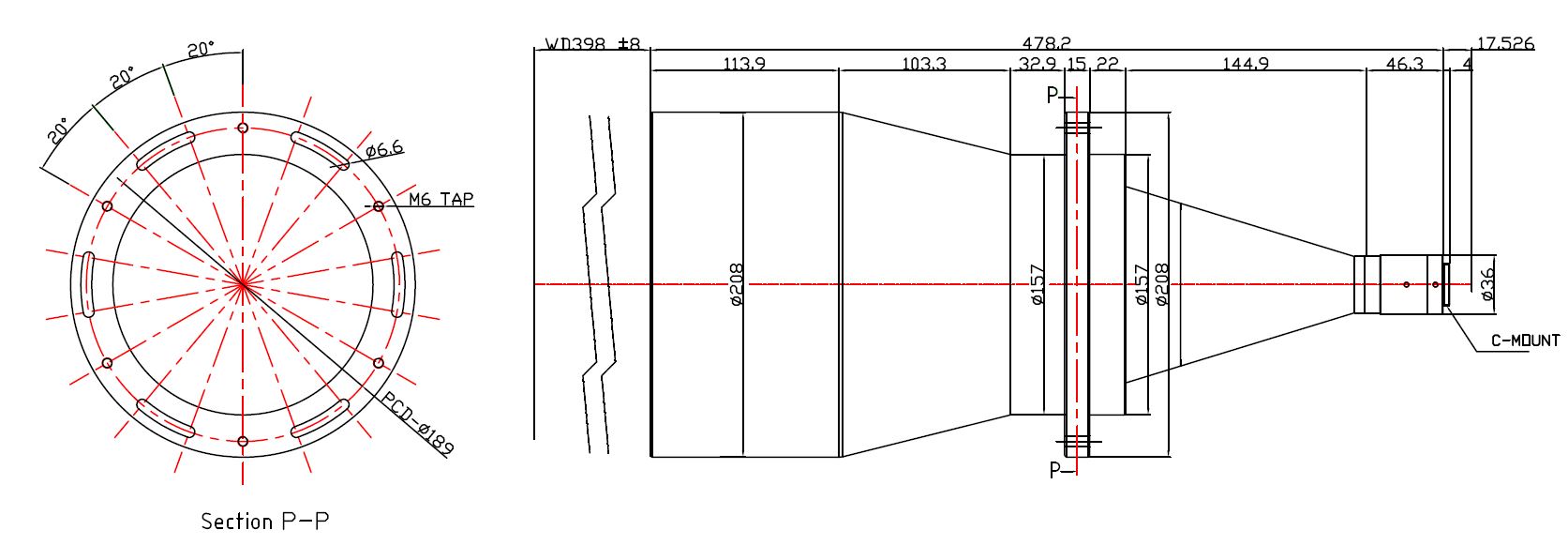

Technical Drawing:
