Lensagon TD47M-02-542

Super High Res Double Side Telecentric Lens for 56.7mm (diagonal) sensor, Magnification: 0.2x, WD 542mm, F# 7.7, NA 0.013, DOF 8400um, Opt.Dist. 0.04

 Compare
SKU: 11000 Category:

Product Description

The Double Side Telecentric Lens TD47M-02-542 is suitable for sensors up to 47 megapixel and with an image format of 56.7mm (diagonal).

Magnification 0.2 x
Working Distance (WD) 542 mm
Depth of Field (DOF) 8.4 mm @ 22 μm
Resolution (Object Side) 26 μm
Image Format (max.) 56.7mm (diagonal)
Megapixel (max.) 47 MP
Working F-Number 7.7
Numerical Aperture (NA) 0.013
Field of View (FOV) 243.5mm x 145mm
Telecentric Type Double Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.04 %
Mount M72 *

* Other mounts are available on request.

pdf

Additional Information

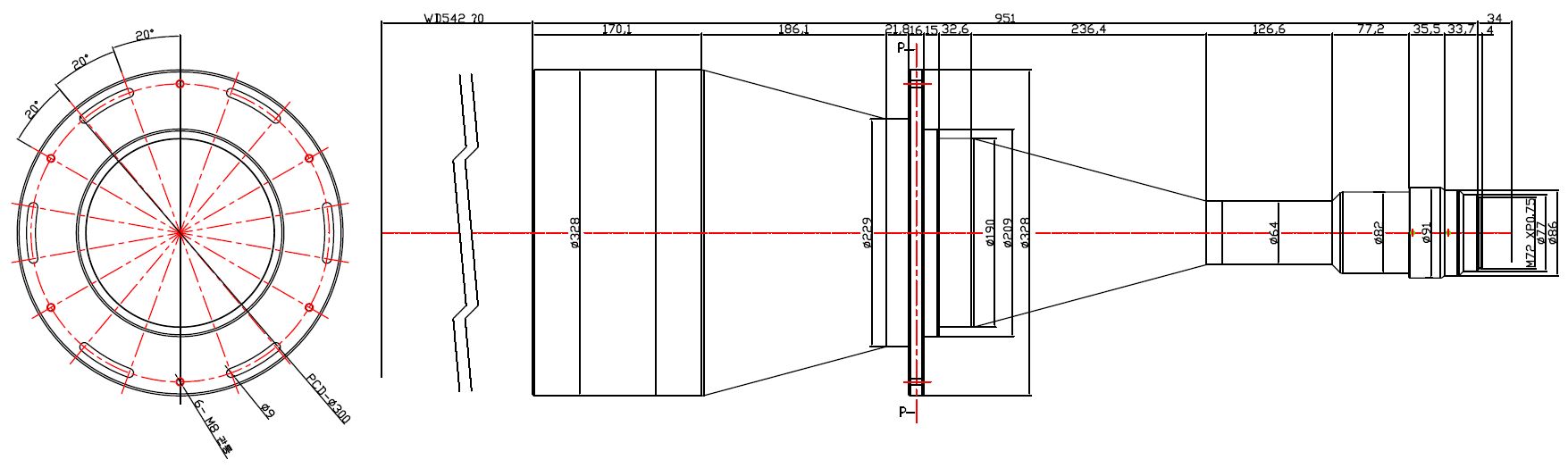

Drawing
