Lensagon TCHR-30-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 3x, WD 110mm, F# 16.6, NA 0.09, DOF 148um, Opt.Dist. 0.11, Coaxial Version

 Compare
SKU: 10042 Category:

Product Description

The Object Side Telecentric Lens TCHR-30-110C is suitable for sensors with an image format of 2/3 inch.

Magnification 3.00 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 148.00 μm @ 40.00 μm
Resolution (Object Side) 3.70 μm
Image Format (max.) 2/3 inch
Working F-Number 16.60
Numerical Aperture (NA) 0.09
Field of View (FOV) 2.93mm x 2.2mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.11 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

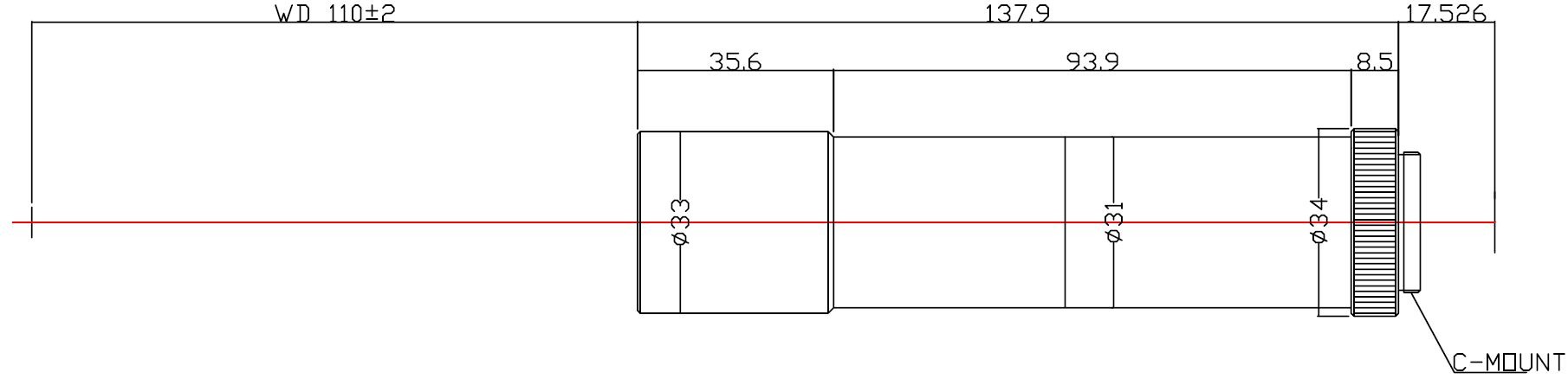

Drawing
