Lensagon TCHR-05-110-S13C

High Res Object Side Telecentric Lens for 1/3 inch sensor, Magnification: 0.5x, WD 110mm, F# 8.3, NA 0.03, DOF 2600um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 09993 Category:

Product Description

The Object Side Telecentric Lens TCHR-05-110-S13C is suitable for sensors with an image format of 1/3 inch.

Magnification 0.5 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 2.6 mm
Resolution (Object Side) 11.2 μm
Image Format (max.) 1/3 inch
Working F-Number 8.3
Numerical Aperture (NA) 0.03
Field of View (FOV) 9.6mm x 7.2mm @ 1/3″
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.05 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

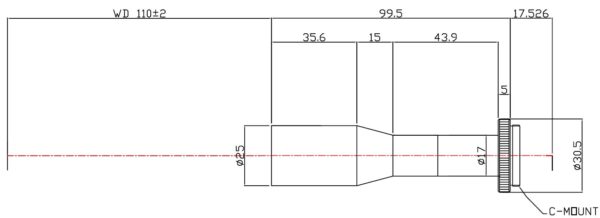

Drawing
