Lensagon TCHR-035-110-S12C

High Res Object Side Telecentric Lens for 1/2 inch sensor, Magnification: 0.35x, WD 110mm, F# 11, NA 0.016, DOF 7.1um, Opt.Dist. 0.05, Coaxial Version

 Compare
SKU: 10450 Category:

Product Description

The Object Side Telecentric Lens TCHR-035-110-S12C is suitable for sensors with an image format of 1/2 inch.

Magnification0.35
MountC-Mount
Aperture11
Working Distance (WD)110 mm
Depth of Field (DOF)7.1 μm
Resolution (Object Side)21.1 μm
Numerical Aperture (NA)0.016
Image Format (max.)1/2 inch
Field of View (FOV)17.6mm x 12.8mm@1/2″ CCD
Lens TypeObject Side
Telecentricity0.03
Optical Distortion (max.)0.05 %
Special FeatureHigh Res
pdf

Additional Information

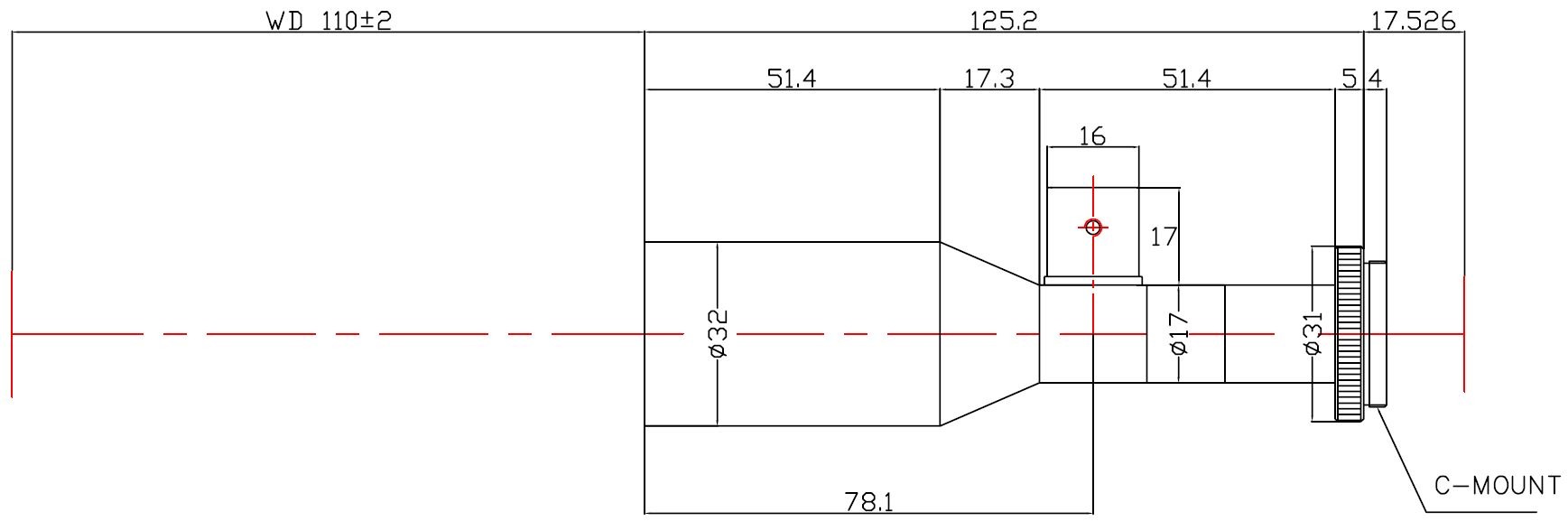

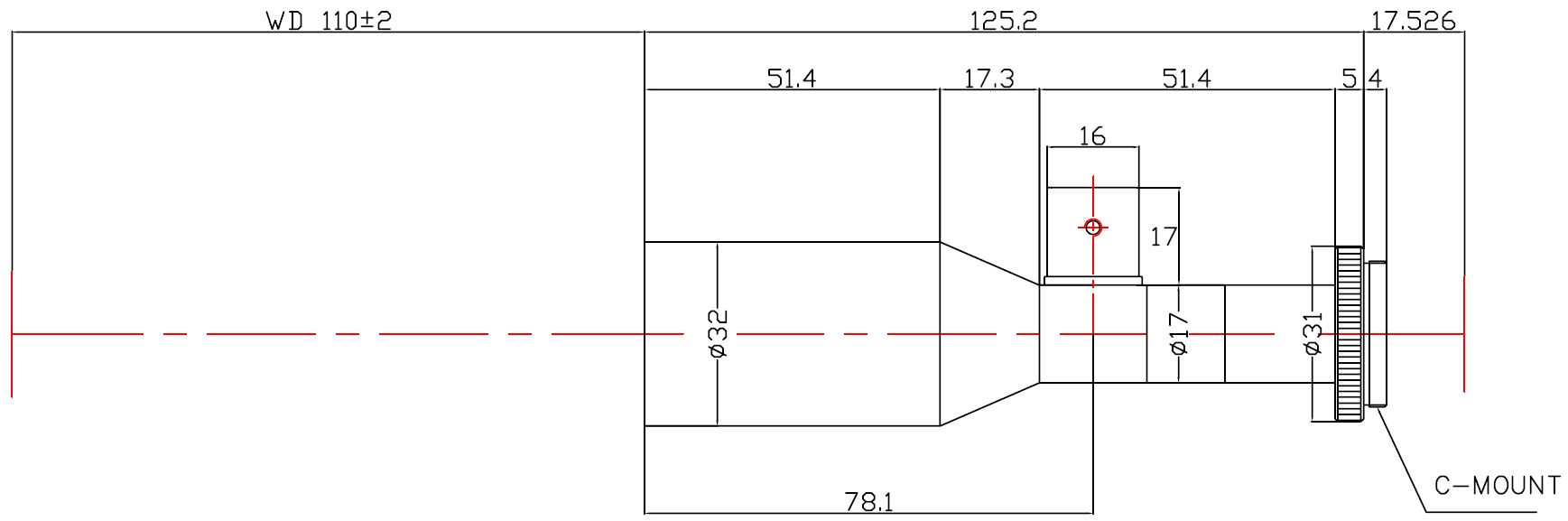

Technical Drawing:

Drawing
