Lensagon TCHR-03-130I

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.3x, WD 130mm, F# 7.9, NA 0.019, DOF 7um, Opt.Dist. 0.08

 Compare
SKU: 10276 Category:

Product Description

The Object Side Telecentric Lens TCHR-03-130I is suitable for sensors with an image format of 2/3 inch.

Magnification 0.3 x
Working Distance (WD) 130 mm
Depth of Field (DOF) 7 μm @ 40 μm
Resolution (Object Side) 18 μm
Image Format (max.) 2/3 inch
Working F-Number 7.9
Numerical Aperture (NA) 0.019
Field of View (FOV) 29.3mm x 22.0mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.08 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

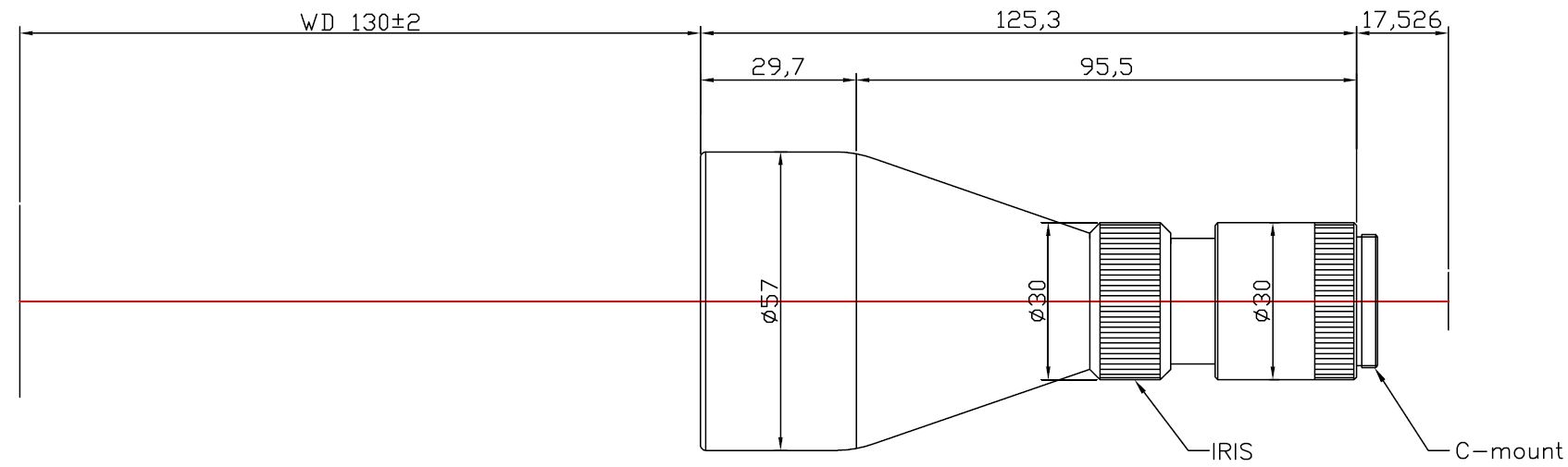

Drawing
