Lensagon TC5M-10-110IC

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 1x, WD 110mm, F# 6.5, NA 0.077, DOF 260um, Opt.Dist. 0.01, Coaxial Version

 Compare
SKU: 00977 Category:

Product Description

The Object Side Telecentric Lens TC5M-10-110IC is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 1 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 260 μm @ 20 μm
Resolution (Object Side) 4.36 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Working F-Number 6.5
Numerical Aperture (NA) 0.077
Field of View (FOV) 8.47mm x 7.1mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.025 °
Optical Distortion (max.) 0.01 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

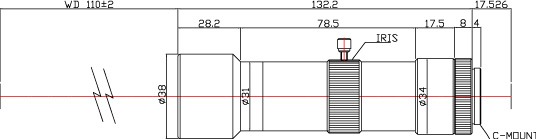

Drawing
