Lensagon TC5M-08-65

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.8x, WD 65mm, F# 6.25, NA 0.064, DOF 390.6um, Opt.Dist. 0.13

 Compare
SKU: 00793 Category:

Product Description

The Object Side Telecentric Lens TC5M-08-65 is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.80 x
Working Distance (WD) 65.00 mm
Depth of Field (DOF) 390.60 μm @ 20.00 μm
Resolution (Object Side) 5.25 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5.00 MP
Working F-Number 6.25
Numerical Aperture (NA) 0.064
Field of View (FOV) 10.65mm x 8.87mm @2/3″
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.13 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

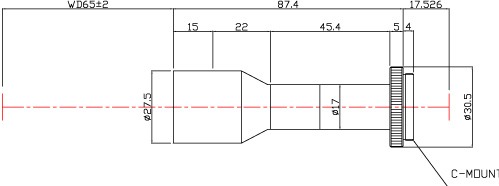

Drawing
