Lensagon TC5M-07-110C

High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.7x, WD 110mm, F# 5.38, NA 0.0651, DOF 439um, Opt.Dist. 0.02, Coaxial Version

 Compare
SKU: 10502 Category:

Product Description

The Object Side Telecentric Lens TC5M-07-110C is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.70 x
Working Distance (WD) 110.00 mm
Depth of Field (DOF) 439.00 μm @ 40.00 μm
Resolution (Object Side) 5.15 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5.00 MP
Working F-Number 5.38
Numerical Aperture (NA) 0.0651
Field of View (FOV) 12.1mm x 10.1mm @ 2/3
Telecentric Type Object Side
Telecentricity 0.02 °
Optical Distortion (max.) 0.02 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

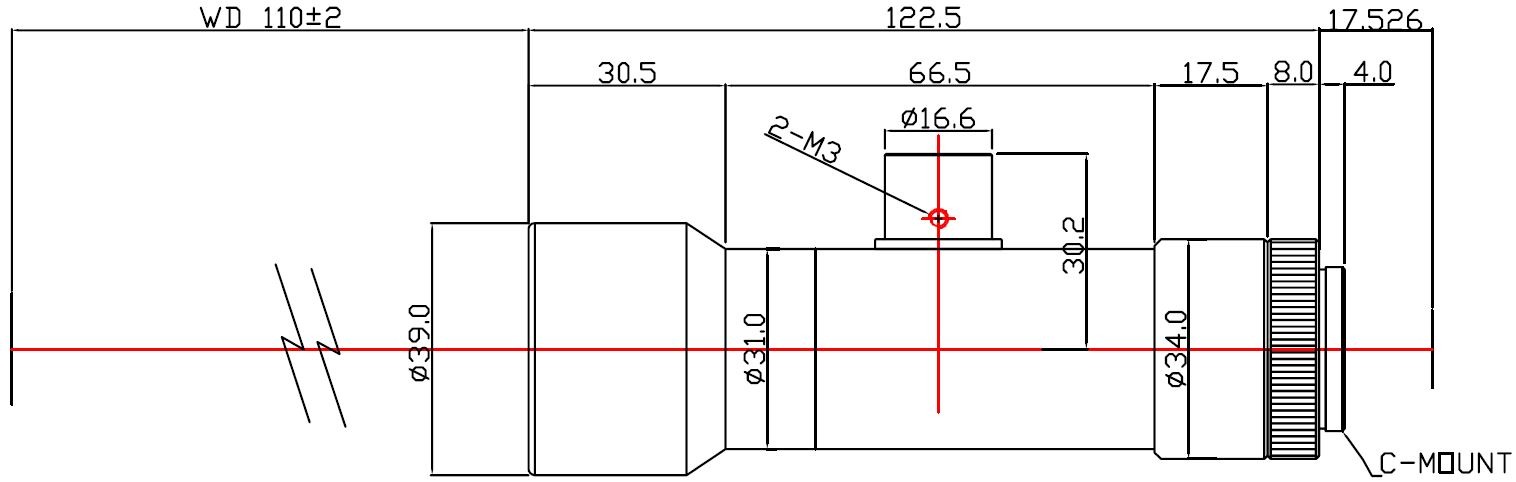

Drawing
