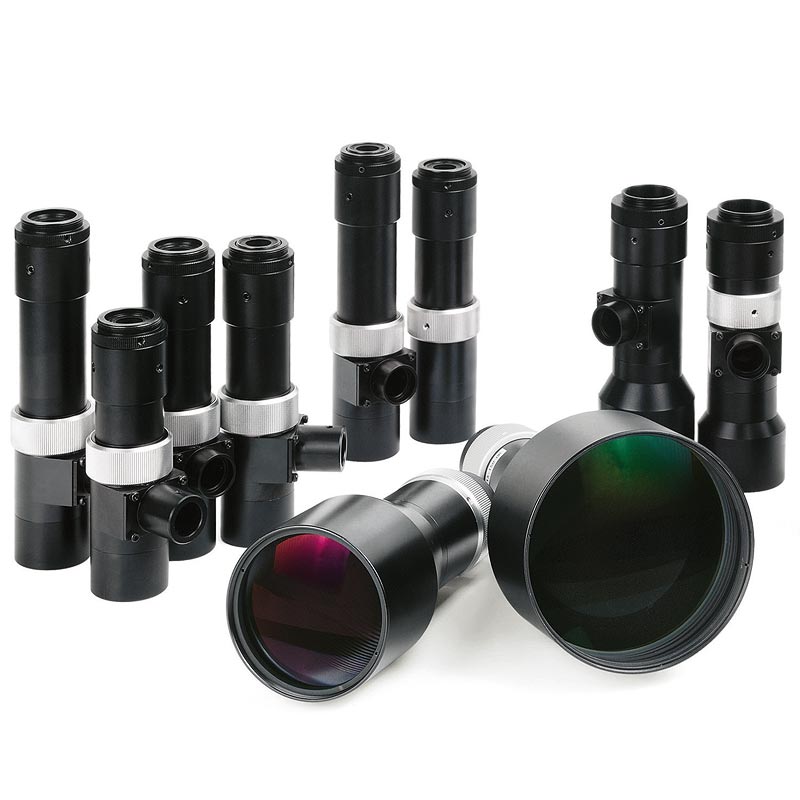

Lensagon TC5M-0348-130I

Super High Res Object Side Telecentric Lens for 2/3 inch sensor, Magnification: 0.348x, WD 130mm, F# 6.25, NA 0.0278, DOF 2060um, Opt.Dist. 0.04

 Compare
SKU: 10333 Category:

Product Description

The Object Side Telecentric Lens TC5M-0348-130I is suitable for sensors up to 5 megapixel and with an image format of 2/3 inch.

Magnification 0.348 x
Working Distance (WD) 130 mm
Depth of Field (DOF) 2.06 mm @ 20 μm
Resolution (Object Side) 12.1 μm
Image Format (max.) 2/3 inch
Megapixel (max.) 5 MP
Working F-Number 6.25
Numerical Aperture (NA) 0.0278
Field of View (FOV) 24.3mm x 20.4mm @ 2/3″
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.04 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information


Drawing
