Lensagon TC4MHR-08-130C

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.8x, WD 130mm, F# 10, NA 0.04, DOF 687um, Opt.Dist. 0.03, Coaxial Version

 Compare
SKU: 11614 Category:

Product Description

The Object Side Telecentric Lens TC4MHR-08-130C is suitable for sensors up to 4 megapixel.

Magnification 0.80 x
Working Distance (WD) 130.00 mm
Depth of Field (DOF) 687.00 μm @ 22.00 μm
Resolution (Object Side) 8.40 μm
Image Format (max.) 1 inch
Megapixel (max.) 4.00 MP
Working F-Number 10.00
Numerical Aperture (NA) 0.04
Field of View (FOV) 14.07mm x 14.07mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

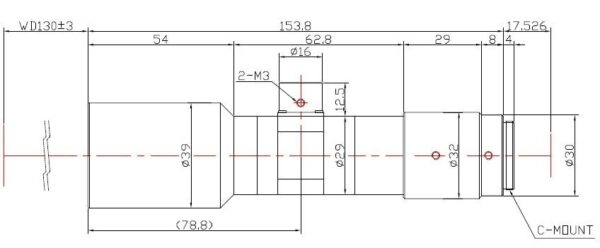

Drawing
