Lensagon TC4M-20-110

High Res Object Side Telecentric Lens for 1 inch sensor, Magnification: 2x, WD 110mm, F# 10, NA 0.1, DOF 110um, Opt.Dist. 0.03

 Compare
SKU: 11061 Category:

Product Description

The Object Side Telecentric Lens TC4M-20-110 is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 2 x
Working Distance (WD) 110 mm
Depth of Field (DOF) 110 μm @ 22 μm
Resolution (Object Side) 3.3 μm
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Working F-Number 10
Numerical Aperture (NA) 0.1
Field of View (FOV) 5.63mm x 5.63mm
Telecentric Type Object Side
Telecentricity 0.04 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

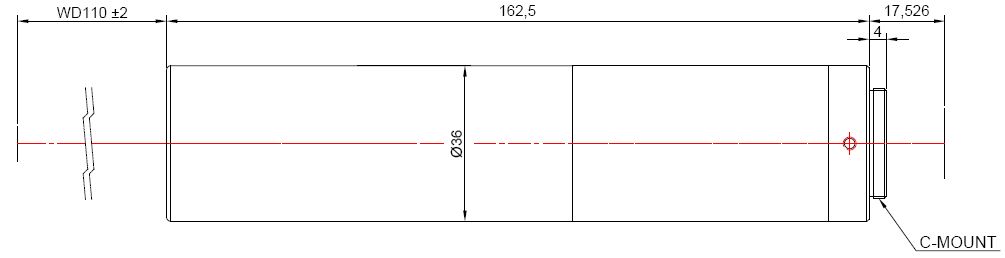

Drawing
