Lensagon TC4M-0312-200I

Standard Object Side Telecentric Lens for 1 inch sensor, Magnification: 0.312x, WD 200mm, F# 4.5, NA 0.0346, DOF 2000um, Opt.Dist. 0.03

 Compare
SKU: 11075 Category:

Product Description

The Object Side Telecentric Lens TC4M-0312-200I is suitable for sensors up to 4 megapixel and with an image format of 1 inch.

Magnification 0.312 x
Working Distance (WD) 200 mm
Depth of Field (DOF) 2 mm @ 22 μm
Resolution (Object Side) 9.7 μm
Image Format (max.) 1 inch
Megapixel (max.) 4 MP
Working F-Number 4.5
Numerical Aperture (NA) 0.0346
Field of View (FOV) 36.08mm x 36.08mm
Telecentric Type Object Side
Telecentricity 0.03 °
Optical Distortion (max.) 0.03 %
Mount C-Mount *

* Other mounts are available on request.

pdf

Additional Information

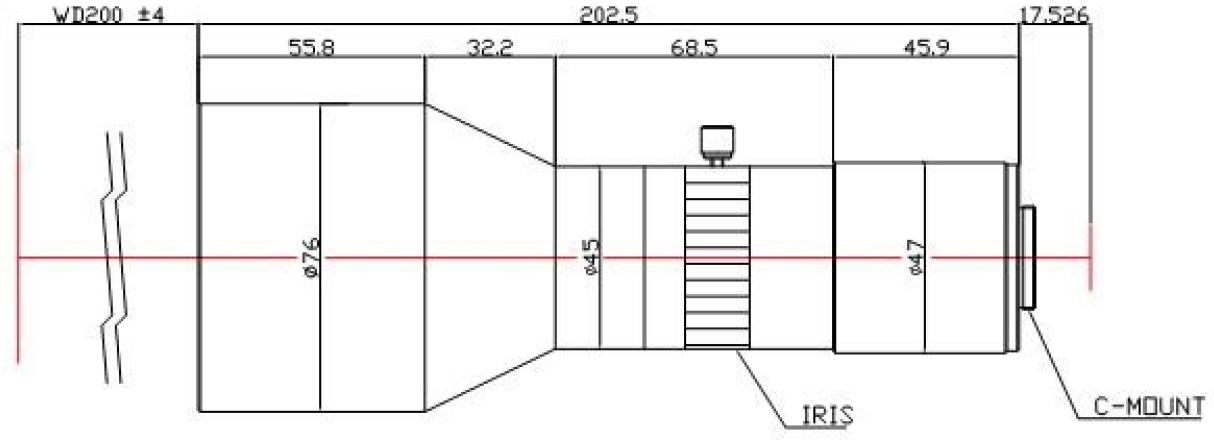

Drawing
